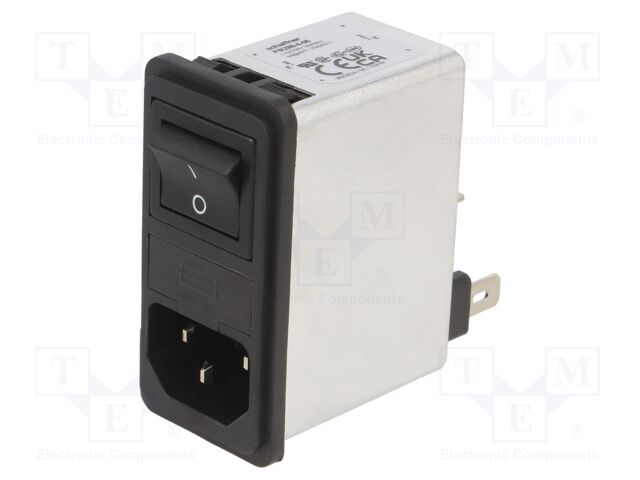

FN286-4-06 SCHAFFNER / TE Connectivity
Hersteller: SCHAFFNER / TE ConnectivityCategory: IEC 60320 connectors
Description: Connector: AC supply; socket; male; Inom: 4A; Ir: 373uA; 250VAC; 1mH
Type of connector: AC supply
Connector: socket
Kind of connector: male
Current rating: 4A
Leakage current: 373µA
Rated voltage: 250V AC
Connector variant: C14 (E)
Manufacturer series: FN286
Mechanical mounting: for panel mounting; snap-in
Leads: connectors
Panel thickness: 0.8...3mm
Inductance: 1mH
Capacitance Cx: 0.22µF
Capacitance Cy: 2.2nF
Resistance: 1MΩ
Design: filter; fuse x2
Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283
Fuse size: 5x20mm
Caution!: fuses not included
Operating temperature: -25...85°C
Leads dimensions: 6.3x0.8mm
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 28.39 EUR |
| 40+ | 28.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FN286-4-06 SCHAFFNER / TE Connectivity
Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; Inom: 4A; Ir: 373uA; 250VAC; 1mH, Type of connector: AC supply, Connector: socket, Kind of connector: male, Current rating: 4A, Leakage current: 373µA, Rated voltage: 250V AC, Connector variant: C14 (E), Manufacturer series: FN286, Mechanical mounting: for panel mounting; snap-in, Leads: connectors, Panel thickness: 0.8...3mm, Inductance: 1mH, Capacitance Cx: 0.22µF, Capacitance Cy: 2.2nF, Resistance: 1MΩ, Design: filter; fuse x2, Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283, Fuse size: 5x20mm, Caution!: fuses not included, Operating temperature: -25...85°C, Leads dimensions: 6.3x0.8mm.
Weitere Produktangebote FN286-4-06 nach Preis ab 29.8 EUR bis 47.61 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FN286-4-06 | Hersteller : TE Connectivity / Schaffner |
AC Power Entry Modules 4A 250VAC 50/60HZ FAST-ON / 2FUSES |
auf Bestellung 98 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
FN286-4-06 | Hersteller : TE Connectivity Schaffner |
Description: PWR ENT MOD RCPT IEC320-C14 PNL Packaging: Tray Filter Type: Filtered (EMI, RFI) - Commercial Connector Type: Receptacle, Male Blades - Module Mounting Type: Panel Mount, Snap-In Number of Positions: 3 Termination: Quick Connect - 0.250" (6.3mm) Approval Agency: CQC, CSA, ENEC, UL Ingress Protection: IP40 Panel Thickness: 0.031" ~ 0.118" (0.79mm ~ 3.00mm) Panel Cutout Dimensions: Rectangular - 29.00mm x 61.50mm Connector Style: IEC 320-C14 Material Flammability Rating: UL94 V-2 Accomodates a Fuse: Yes (Fuse Not Included) Switch Features: Switch On-Off Fuse Holder, Drawer: Fuse Holder, Twin Fused Part Status: Active Current Rating - Filter: 4A |
auf Bestellung 19 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
FN286-4-06 | Hersteller : SCHAFFNER - TE CONNECTIVITY |
Description: SCHAFFNER - TE CONNECTIVITY - FN286-4-06 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 4 A, 250 VAC, 2-poliger Schalter tariffCode: 85366990 rohsCompliant: YES Schaltertyp: 2-poliger Schalter hazardous: false rohsPhthalatesCompliant: YES Sicherungsgröße: 5mm x 20mm Steckverbindermontage: Einrast-, Flanschmontage IP-Schutzart: IP40 usEccn: EAR99 Anwendungen des Gerätestecker-Kombielements: Universell Nennstrom: 4A euEccn: NLR Steckverbinder: IEC C14 Sicherungshalter: 2-poliger Sicherungshalter Produktpalette: FN 280 productTraceability: No Nennspannung: 250VAC Steckverbinderanschlüsse: Steckanschluss |
auf Bestellung 1491 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
 |
FN286-4-06 | Hersteller : Schaffner |
Power Entry Module Filtered M 3 POS 250VAC 4A Switch/Fuse ST 1 Port |
auf Bestellung 23 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
| FN286-4-06 | Hersteller : SCHAFFNER |
FN286-4-06 IEC 60320 connectors |
auf Bestellung 36 Stücke: Lieferzeit 7-14 Tag (e) |
|
