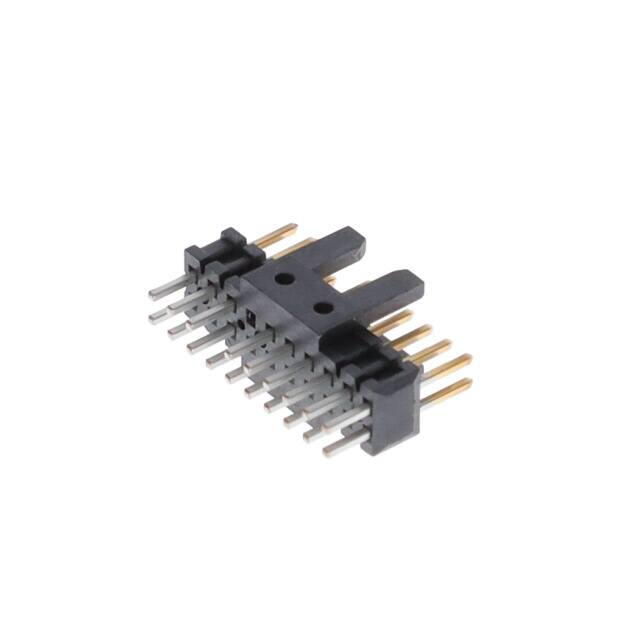

FTSH-110-01-F-D-007-K Samtec

Description: CONN HEADER VERT 20POS 1.27MM, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Overall Contact Length: 0.309" (7.86mm), Shrouding: Unshrouded, Insulation Height: 0.099" (2.51mm), Contact Length - Post: 0.090" (2.29mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Cuttable, Features: Keying Shroud, Packaging: Tube.
