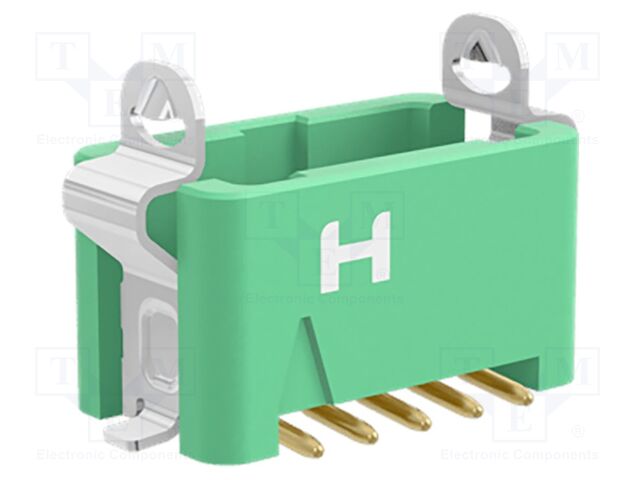

G125-MS11005L3P Harwin
| Anzahl | Privatkunde |
|---|---|
| 1+ | 16.15 EUR |
| 10+ | 13.39 EUR |
| 20+ | 12.95 EUR |
| 50+ | 12.79 EUR |
| 200+ | 11.58 EUR |
| 500+ | 10.89 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details G125-MS11005L3P Harwin
Description: CONN HEADER SMD 10POS 1.25MM, Features: Pick and Place, Solder Retention, Packaging: Strip, Connector Type: Header, Current Rating (Amps): 2A per Contact, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Part Status: Active, Contact Shape: Circular, Insulation Height: 0.193" (4.90mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Weitere Produktangebote G125-MS11005L3P nach Preis ab 11.67 EUR bis 20.47 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G125-MS11005L3P | Harwin Inc. |
 Description: CONN HEADER SMD 10POS 1.25MMFeatures: Pick and Place, Solder Retention Packaging: Strip Connector Type: Header Current Rating (Amps): 2A per Contact Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -65°C ~ 150°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Green Pitch - Mating: 0.049" (1.25mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 8.00µin (0.203µm) Part Status: Active Contact Shape: Circular Insulation Height: 0.193" (4.90mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free Row Spacing - Mating: 0.049" (1.25mm) |
auf Bestellung 1629 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
G125-MS11005L3P | HARWIN |
Description: HARWIN - G125-MS11005L3P - Stiftleiste, Schwarz / Grün, Wire-to-Board, 1.25 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Gecko G125 productTraceability: No Kontaktanschluss: Oberflächenmontage usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.25mm |
auf Bestellung 102 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
G125-MS11005L3P | HARWIN |
Category: Raster signal connectors 1,25mm Description: Connector: wire-wire/PCB; socket; male; PIN: 10; Gecko; 2A; 450V Type of connector: wire-wire/PCB Connector: socket Kind of connector: male Number of pins: 10 Manufacturer series: Gecko Spatial orientation: vertical Electrical mounting: SMT Contacts pitch: 1.25mm Connector pinout layout: 2x5 Contact plating: gold-plated Mechanical mounting: on PCBs Locking system: latch Rated voltage: 450V Current rating: 2A |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| G125-MS11005L3P |
|
Hersteller: Harwin Inc.
Description: CONN HEADER SMD 10POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Strip
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Part Status: Active
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
Description: CONN HEADER SMD 10POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Strip
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Part Status: Active
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 1629 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 16.97 EUR |
| 10+ | 14.41 EUR |
| 100+ | 12.25 EUR |
| 500+ | 11.86 EUR |
| G125-MS11005L3P |
|
Hersteller: HARWIN
Description: HARWIN - G125-MS11005L3P - Stiftleiste, Schwarz / Grün, Wire-to-Board, 1.25 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Gecko G125
productTraceability: No
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.25mm
Description: HARWIN - G125-MS11005L3P - Stiftleiste, Schwarz / Grün, Wire-to-Board, 1.25 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Gecko G125
productTraceability: No
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.25mm
auf Bestellung 102 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 13+ | 20.47 EUR |
| 16+ | 14.88 EUR |
| 100+ | 11.67 EUR |
| G125-MS11005L3P |
|
Hersteller: HARWIN
Category: Raster signal connectors 1,25mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 10; Gecko; 2A; 450V
Type of connector: wire-wire/PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: Gecko
Spatial orientation: vertical
Electrical mounting: SMT
Contacts pitch: 1.25mm
Connector pinout layout: 2x5
Contact plating: gold-plated
Mechanical mounting: on PCBs
Locking system: latch
Rated voltage: 450V
Current rating: 2A
Category: Raster signal connectors 1,25mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 10; Gecko; 2A; 450V
Type of connector: wire-wire/PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: Gecko
Spatial orientation: vertical
Electrical mounting: SMT
Contacts pitch: 1.25mm
Connector pinout layout: 2x5
Contact plating: gold-plated
Mechanical mounting: on PCBs
Locking system: latch
Rated voltage: 450V
Current rating: 2A
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
