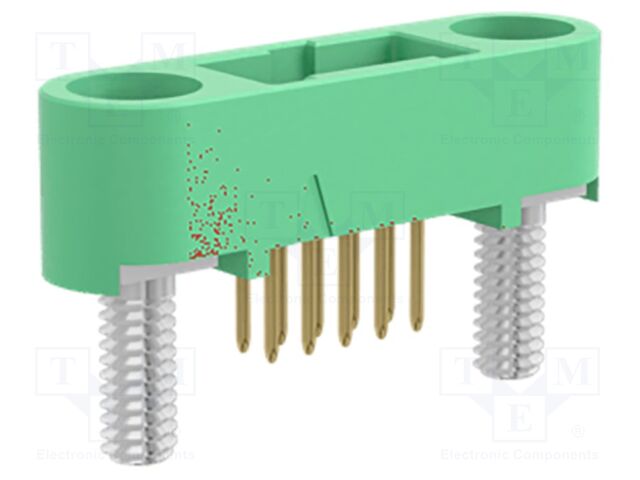

G125-MV11005M2P Harwin Inc.
Hersteller: Harwin Inc.Description: CONN HEADER VERT 10POS 1.25MM
Packaging: Bulk
Features: Mating Flange, Mounting Flange, Pick and Place
Connector Type: Header
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 518 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 19.40 EUR |
| 10+ | 16.49 EUR |
| 100+ | 14.01 EUR |
| 500+ | 12.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G125-MV11005M2P Harwin Inc.
Description: CONN HEADER VERT 10POS 1.25MM, Packaging: Bulk, Features: Mating Flange, Mounting Flange, Pick and Place, Connector Type: Header, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.193" (4.90mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Weitere Produktangebote G125-MV11005M2P nach Preis ab 12.41 EUR bis 20.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G125-MV11005M2P | Hersteller : Harwin |
Power to the Board 10P Male Vert 3.0mm Brdmnt Jackscrew |
auf Bestellung 634 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G125-MV11005M2P | Hersteller : HARWIN |
Description: HARWIN - G125-MV11005M2P - Stiftleiste, Schwarz / Grün, Wire-to-Board, 1.25 mm, 2 Reihe(n), 10 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: Gecko SL G125 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.25mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
