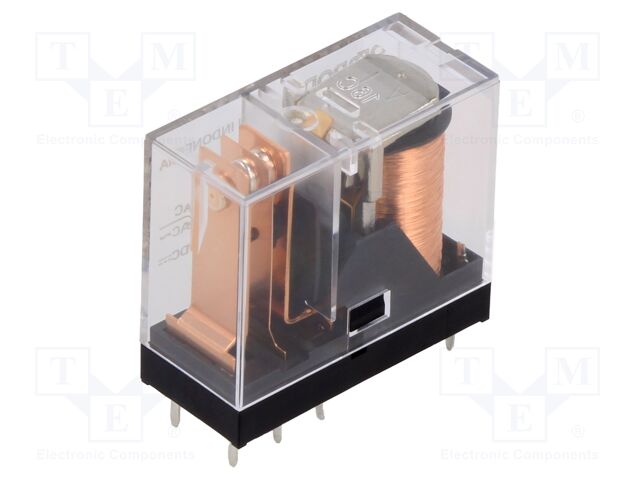

Technische Details G2R1EASIDC24 Omron
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 30V DC, Manufacturer series: G2R, Switched voltage: max. 125V DC; max. 380V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.1kΩ, Operate time: 15ms, Body dimensions: 29x13x25.5mm, Release time: 5ms, Contact resistance: 30mΩ, Operating temperature: -40...70°C, Mechanical durability: 20000000 cycles, Contact material: silver alloy, Leads: for PCB, Enclosure description: standard seal, Coil current: 21.8mA.
Weitere Produktangebote G2R1EASIDC24 nach Preis ab 4.92 EUR bis 17.81 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2R-1-E-ASI-DC24 | OMRON Electronic Components |
 Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 16A AC contacts rating @R: 16A / 250V AC DC contacts rating @R: 16A / 30V DC Manufacturer series: G2R Switched voltage: max. 125V DC; max. 380V AC Relay variant: miniature Mounting: PCB Coil resistance: 1.1kΩ Operate time: 15ms Body dimensions: 29x13x25.5mm Release time: 5ms Contact resistance: 30mΩ Operating temperature: -40...70°C Mechanical durability: 20000000 cycles Contact material: silver alloy Leads: for PCB Enclosure description: standard seal Coil current: 21.8mA |
auf Bestellung 23 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
|
|
G2R1EASIDC24 | Omron |
Power Relay 24VDC 16A SPDT(29mm 13mm 25.5mm) THT |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
G2R-1-E-ASI DC24 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPDT 16A 24V Packaging: Tray Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Approval Agency: CSA, TUV, UR, VDE Relay Type: General Purpose Coil Current: 21.8 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy Contact Form: SPDT (1 Form C) Contact Rating (Current): 16 A Switching Voltage: 380VAC, 125VDC - Max Must Release Voltage: 3.6 VDC Must Operate Voltage: 16.8 VDC Operate Time: 15 ms Release Time: 5 ms Load - Max Switching: 6080VA, 2000W |
auf Bestellung 17 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G2R-1-E-ASI-DC24 | Omron Electronics |
General Purpose Relays SPDT 16A Thru-Hole 24VDC 1.1K Ohm |
auf Bestellung 8 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
G2R-1-E-ASI-DC24 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPDT 16A 24V Load - Max Switching: 6080VA, 2000W Approval Agency: CSA, TUV, UR, VDE Part Status: Active Release Time: 5 ms Operate Time: 15 ms Must Operate Voltage: 16.8 VDC Must Release Voltage: 3.6 VDC Switching Voltage: 380VAC, 125VDC - Max Contact Rating (Current): 16 A Contact Form: SPDT (1 Form C) Contact Material: Silver Alloy Seal Rating: Sealed - Flux Protection Coil Type: Non Latching Coil Current: 21.8 mA Termination Style: PC Pin Operating Temperature: -40°C ~ 70°C Coil Voltage: 24VDC Mounting Type: Through Hole Packaging: Tray Relay Type: General Purpose |
auf Bestellung 80 Stücke: Lieferzeit 10-14 Tag (e) |
|
| G2R-1-E-ASI-DC24 |
|
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 30V DC
Manufacturer series: G2R
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.1kΩ
Operate time: 15ms
Body dimensions: 29x13x25.5mm
Release time: 5ms
Contact resistance: 30mΩ
Operating temperature: -40...70°C
Mechanical durability: 20000000 cycles
Contact material: silver alloy
Leads: for PCB
Enclosure description: standard seal
Coil current: 21.8mA
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 30V DC
Manufacturer series: G2R
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.1kΩ
Operate time: 15ms
Body dimensions: 29x13x25.5mm
Release time: 5ms
Contact resistance: 30mΩ
Operating temperature: -40...70°C
Mechanical durability: 20000000 cycles
Contact material: silver alloy
Leads: for PCB
Enclosure description: standard seal
Coil current: 21.8mA
auf Bestellung 23 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.15 EUR |
| 15+ | 4.92 EUR |
| G2R1EASIDC24 |
|
Hersteller: Omron
Power Relay 24VDC 16A SPDT(29mm 13mm 25.5mm) THT
Power Relay 24VDC 16A SPDT(29mm 13mm 25.5mm) THT
auf Bestellung 35 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 18+ | 8.18 EUR |
| G2R-1-E-ASI DC24 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE SPDT 16A 24V
Packaging: Tray
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Approval Agency: CSA, TUV, UR, VDE
Relay Type: General Purpose
Coil Current: 21.8 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 16 A
Switching Voltage: 380VAC, 125VDC - Max
Must Release Voltage: 3.6 VDC
Must Operate Voltage: 16.8 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 6080VA, 2000W
Description: RELAY GEN PURPOSE SPDT 16A 24V
Packaging: Tray
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Approval Agency: CSA, TUV, UR, VDE
Relay Type: General Purpose
Coil Current: 21.8 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 16 A
Switching Voltage: 380VAC, 125VDC - Max
Must Release Voltage: 3.6 VDC
Must Operate Voltage: 16.8 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 6080VA, 2000W
auf Bestellung 17 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 15.7 EUR |
| 10+ | 13.99 EUR |
| G2R-1-E-ASI-DC24 |
|
Hersteller: Omron Electronics
General Purpose Relays SPDT 16A Thru-Hole 24VDC 1.1K Ohm
General Purpose Relays SPDT 16A Thru-Hole 24VDC 1.1K Ohm
auf Bestellung 8 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 15.73 EUR |
| 10+ | 13.27 EUR |
| 50+ | 12.5 EUR |
| 100+ | 11.88 EUR |
| 200+ | 11.4 EUR |
| 500+ | 11.3 EUR |
| 1000+ | 10.28 EUR |
| G2R-1-E-ASI-DC24 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE SPDT 16A 24V
Load - Max Switching: 6080VA, 2000W
Approval Agency: CSA, TUV, UR, VDE
Part Status: Active
Release Time: 5 ms
Operate Time: 15 ms
Must Operate Voltage: 16.8 VDC
Must Release Voltage: 3.6 VDC
Switching Voltage: 380VAC, 125VDC - Max
Contact Rating (Current): 16 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Alloy
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 21.8 mA
Termination Style: PC Pin
Operating Temperature: -40°C ~ 70°C
Coil Voltage: 24VDC
Mounting Type: Through Hole
Packaging: Tray
Relay Type: General Purpose
Description: RELAY GEN PURPOSE SPDT 16A 24V
Load - Max Switching: 6080VA, 2000W
Approval Agency: CSA, TUV, UR, VDE
Part Status: Active
Release Time: 5 ms
Operate Time: 15 ms
Must Operate Voltage: 16.8 VDC
Must Release Voltage: 3.6 VDC
Switching Voltage: 380VAC, 125VDC - Max
Contact Rating (Current): 16 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Alloy
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 21.8 mA
Termination Style: PC Pin
Operating Temperature: -40°C ~ 70°C
Coil Voltage: 24VDC
Mounting Type: Through Hole
Packaging: Tray
Relay Type: General Purpose
auf Bestellung 80 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 17.81 EUR |
| 10+ | 14.37 EUR |
| 25+ | 13.98 EUR |
| 40+ | 13.59 EUR |
