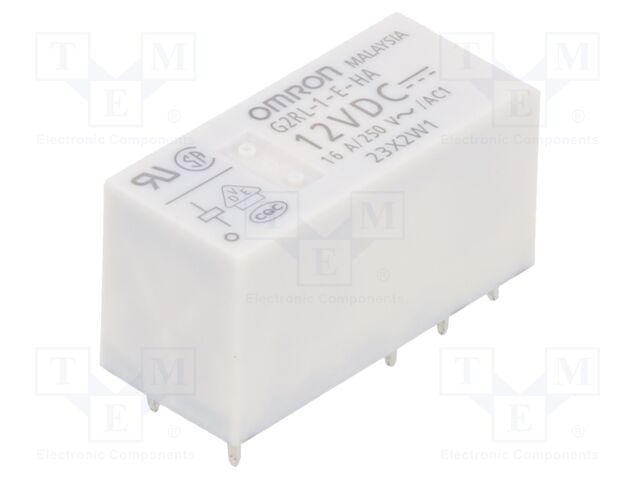

G2RL-1-E-HA-DC12 OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Manufacturer series: G2RL
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 5ms
Mechanical durability: 20000000 cycles
Contact resistance: 100mΩ
Contact material: AgSnO2
Leads: for PCB
Enclosure description: standard seal
Operating temperature: -40...85°C
Application: Home
Coil current: 33.3mA
Coil resistance: 360Ω
| Anzahl | Preis |
|---|---|
| 11+ | 6.72 EUR |
| 13+ | 5.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-1-E-HA-DC12 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Manufacturer series: G2RL, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 5ms, Mechanical durability: 20000000 cycles, Contact resistance: 100mΩ, Contact material: AgSnO2, Leads: for PCB, Enclosure description: standard seal, Operating temperature: -40...85°C, Application: Home, Coil current: 33.3mA, Coil resistance: 360Ω.
Weitere Produktangebote G2RL-1-E-HA-DC12 nach Preis ab 5.14 EUR bis 9.37 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2RL-1-E-HA DC12 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPDT 16A 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CQC, CSA, UR, VDE Relay Type: General Purpose Coil Current: 33.3 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy, Cadmium Free Contact Form: SPDT (1 Form C) Contact Rating (Current): 16 A Switching Voltage: 440VAC, 300VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 8.4 VDC Operate Time: 15 ms Release Time: 5 ms Load - Max Switching: 7040VA, 4800W |
auf Bestellung 199 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G2RL-1-E-HA DC12 | Omron Electronics |
General Purpose Relays Power PCB Relay |
auf Bestellung 73 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| G2RL-1-E-HA DC12 | Omron |
G2RL-1-E-HA-DC12 |
auf Bestellung 16 Stücke: Lieferzeit 14-21 Tag (e) |
|
| G2RL-1-E-HA DC12 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE SPDT 16A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 33.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 7040VA, 4800W
Description: RELAY GEN PURPOSE SPDT 16A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 33.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 7040VA, 4800W
auf Bestellung 199 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 3+ | 7.76 EUR |
| 10+ | 6.92 EUR |
| 25+ | 6.61 EUR |
| 50+ | 6.38 EUR |
| 100+ | 6.16 EUR |
| G2RL-1-E-HA DC12 |
|
Hersteller: Omron Electronics
General Purpose Relays Power PCB Relay
General Purpose Relays Power PCB Relay
auf Bestellung 73 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 7.85 EUR |
| 10+ | 7 EUR |
| 20+ | 6.65 EUR |
| 50+ | 6.39 EUR |
| 100+ | 6.05 EUR |
| 200+ | 5.21 EUR |
| 500+ | 5.14 EUR |
| G2RL-1-E-HA DC12 |
|
Hersteller: Omron
G2RL-1-E-HA-DC12
G2RL-1-E-HA-DC12
auf Bestellung 16 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 16+ | 9.37 EUR |
