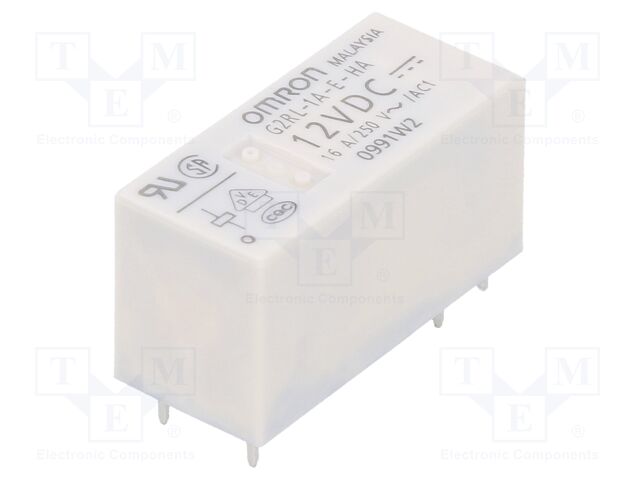

G2RL-1A-E-HA DC12 OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Manufacturer series: G2RL
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 5ms
Contact resistance: 100mΩ
Leads: for PCB
Enclosure description: standard seal
Operating temperature: -40...85°C
Terminal pitch: 3.5mm
Coil current: 33.33mA
Coil resistance: 360Ω
| Anzahl | Privatkunde |
|---|---|
| 14+ | 6.13 EUR |
| 16+ | 5.43 EUR |
| 20+ | 5.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-1A-E-HA DC12 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Manufacturer series: G2RL, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 5ms, Contact resistance: 100mΩ, Leads: for PCB, Enclosure description: standard seal, Operating temperature: -40...85°C, Terminal pitch: 3.5mm, Coil current: 33.33mA, Coil resistance: 360Ω.
Weitere Produktangebote G2RL-1A-E-HA DC12 nach Preis ab 5.99 EUR bis 9.57 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2RL-1A-E-HA DC12 | Omron Electronics |
General Purpose Relays Power PCB Relay |
auf Bestellung 118 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G2RL-1A-E-HA DC12 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPST 16A 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 33.3 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy, Cadmium Free Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 16 A Switching Voltage: 440VAC, 300VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 8.4 VDC Operate Time: 15 ms Release Time: 5 ms Part Status: Active Approval Agency: CQC, CSA, UR, VDE Load - Max Switching: 7040VA, 4800W |
auf Bestellung 324 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G2RL-1A-E-HA DC12 | Omron |
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT |
auf Bestellung 46 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
|
|
G2RL-1A-E-HA DC12 | Omron |
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
| G2RL-1A-E-HA DC12 |
|
Hersteller: Omron Electronics
General Purpose Relays Power PCB Relay
General Purpose Relays Power PCB Relay
auf Bestellung 118 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 8.32 EUR |
| 10+ | 7.22 EUR |
| 20+ | 7.02 EUR |
| 50+ | 6.76 EUR |
| 100+ | 6.62 EUR |
| 200+ | 6.43 EUR |
| 500+ | 5.99 EUR |
| G2RL-1A-E-HA DC12 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE SPST 16A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 33.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 15 ms
Release Time: 5 ms
Part Status: Active
Approval Agency: CQC, CSA, UR, VDE
Load - Max Switching: 7040VA, 4800W
Description: RELAY GEN PURPOSE SPST 16A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 33.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 15 ms
Release Time: 5 ms
Part Status: Active
Approval Agency: CQC, CSA, UR, VDE
Load - Max Switching: 7040VA, 4800W
auf Bestellung 324 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 9.15 EUR |
| 10+ | 8.14 EUR |
| 25+ | 7.78 EUR |
| 50+ | 7.51 EUR |
| 100+ | 7.26 EUR |
| 300+ | 6.87 EUR |
| G2RL-1A-E-HA DC12 |
|
Hersteller: Omron
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT
auf Bestellung 46 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 20+ | 9.19 EUR |
| 22+ | 7.98 EUR |
| 40+ | 7.21 EUR |
| G2RL-1A-E-HA DC12 |
|
Hersteller: Omron
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT
Power Relay 12VDC 10A SPST-NO(29x12.7x15.7)mm THT
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 20+ | 9.57 EUR |
