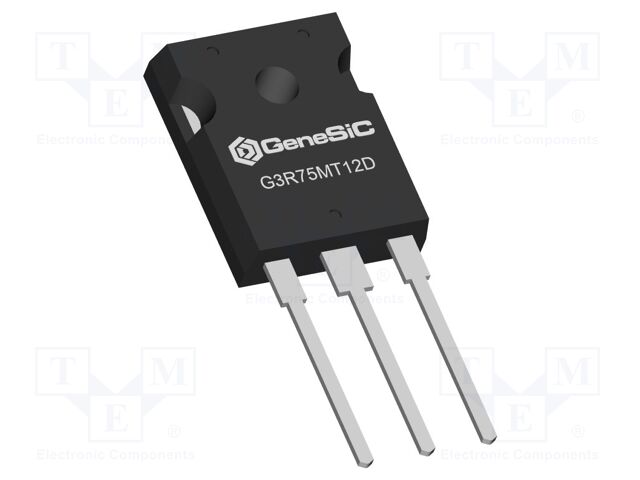

G3R75MT12D

Hersteller: GeneSiC SEMICONDUCTOR
Category: THT N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 29A; Idm: 80A; 207W
Kind of package: tube
Type of transistor: N-MOSFET
Polarisation: unipolar
Gate-source voltage: -5...15V
Gate charge: 54nC
On-state resistance: 75mΩ
Drain current: 29A
Pulsed drain current: 80A
Power dissipation: 207W
Drain-source voltage: 1.2kV
Case: TO247-3
Kind of channel: enhancement
Mounting: THT
Technology: G3R™; SiC

Hersteller: GeneSiC Semiconductor
SiC MOSFETs 1200V 75mohm TO-247-3 G3R SiC MOSFET

Hersteller: Navitas Semiconductor, Inc.
Description: SIC MOSFET N-CH 41A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 41A (Tc)
Rds On (Max) @ Id, Vgs: 90mOhm @ 20A, 15V
Power Dissipation (Max): 207W (Tc)
Vgs(th) (Max) @ Id: 2.69V @ 7.5mA
Supplier Device Package: TO-247-3
Drive Voltage (Max Rds On, Min Rds On): 15V
Vgs (Max): +22V, -10V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds: 1560 pF @ 800 V

Hersteller: GENESIC
Description: GENESIC - G3R75MT12D - Siliziumkarbid-MOSFET, Eins, n-Kanal, 41 A, 1.2 kV, 0.075 ohm, TO-247
tariffCode: 85412900
Drain-Source-Spannung Vds: 1.2kV
rohsCompliant: YES
Dauer-Drainstrom Id: 41A
hazardous: false
rohsPhthalatesCompliant: YES
isCanonical: Y
usEccn: EAR99
Gate-Source-Schwellenspannung, max.: 2.69V
MOSFET-Modul-Konfiguration: Eins
euEccn: NLR
Verlustleistung: 207W
Bauform - Transistor: TO-247
Anzahl der Pins: 3Pin(s)
Produktpalette: G3R
productTraceability: No
Kanaltyp: n-Kanal
Rds(on)-Prüfspannung: 15V
Betriebstemperatur, max.: 175°C
Drain-Source-Durchgangswiderstand: 0.075ohm
SVHC: No SVHC (17-Dec-2015)
