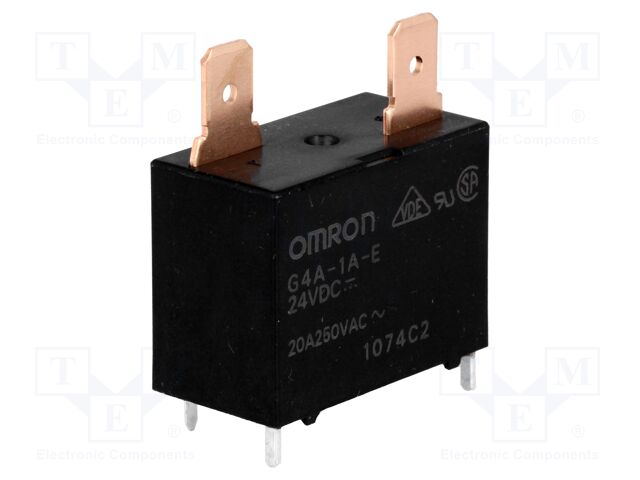

G4A-1A-E 24VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Relay series: G4A
Relay variant: power
Operating temperature: -20...60°C
Mounting: PCB
Body dimensions: 30.5x16x23.5mm
Switched voltage: max. 30V DC; max. 250V AC
Coil resistance: 640Ω
AC contacts rating @R: 20A / 250V AC
Contact resistance: 100mΩ
Coil power consumption: 0.9W
Leads: connectors 6,35x0,8mm; for PCB
DC contacts rating @R: 15A / 30V DC
Coil current: 37.5mA
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Relay series: G4A
Relay variant: power
Operating temperature: -20...60°C
Mounting: PCB
Body dimensions: 30.5x16x23.5mm
Switched voltage: max. 30V DC; max. 250V AC
Coil resistance: 640Ω
AC contacts rating @R: 20A / 250V AC
Contact resistance: 100mΩ
Coil power consumption: 0.9W
Leads: connectors 6,35x0,8mm; for PCB
DC contacts rating @R: 15A / 30V DC
Coil current: 37.5mA
auf Bestellung 146 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
18+ | 4.13 EUR |
21+ | 3.47 EUR |
23+ | 3.15 EUR |
25+ | 2.97 EUR |
100+ | 2.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G4A-1A-E 24VDC OMRON Electronic Components
Category: Power Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 20A, Relay series: G4A, Relay variant: power, Operating temperature: -20...60°C, Mounting: PCB, Body dimensions: 30.5x16x23.5mm, Switched voltage: max. 30V DC; max. 250V AC, Coil resistance: 640Ω, AC contacts rating @R: 20A / 250V AC, Contact resistance: 100mΩ, Coil power consumption: 0.9W, Leads: connectors 6,35x0,8mm; for PCB, DC contacts rating @R: 15A / 30V DC, Coil current: 37.5mA, Anzahl je Verpackung: 1 Stücke.
