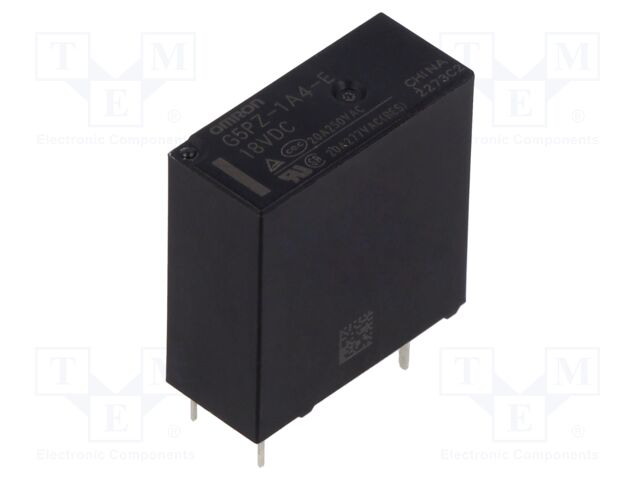

G5PZ-1A4-E DC18 OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; 20A; 20A/250VAC
Contacts configuration: SPST-NO
AC contacts rating @R: 20A / 250V AC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 18V DC
Switched voltage: max. 250V AC
Contact current max.: 20A
Contact resistance: 100mΩ
Manufacturer series: G5PZ
Mounting: PCB
Operating temperature: -40...70°C
Body dimensions: 23.8x10.3x24.9mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 25 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 15+ | 4.86 EUR |
| 19+ | 3.92 EUR |
| 20+ | 3.70 EUR |
| 100+ | 3.56 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5PZ-1A4-E DC18 OMRON Electronic Components
Description: Sealed type with Explos protec, Packaging: Tray, Mounting Type: Through Hole, Coil Voltage: 18VDC, Operating Temperature: -40°C ~ 70°C, Termination Style: PC Pin, Approval Agency: CQC, CSA, TUV, UR, VDE, Relay Type: General Purpose, Coil Current: 29.4 mA, Coil Type: Non Latching, Seal Rating: Sealed - Fully, Contact Material: Silver Alloy, Cadmium Free, Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 20 A, Switching Voltage: 250VAC - Max, Must Release Voltage: 1.8 VDC, Must Operate Voltage: 13.5 VDC, Operate Time: 15 ms, Release Time: 5 ms, Load - Max Switching: 5000VA.
Weitere Produktangebote G5PZ-1A4-E DC18 nach Preis ab 3.70 EUR bis 6.44 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
G5PZ-1A4-E DC18 | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; 20A; 20A/250VAC Contacts configuration: SPST-NO AC contacts rating @R: 20A / 250V AC Type of relay: electromagnetic Relay variant: miniature Rated coil voltage: 18V DC Switched voltage: max. 250V AC Contact current max.: 20A Contact resistance: 100mΩ Manufacturer series: G5PZ Mounting: PCB Operating temperature: -40...70°C Body dimensions: 23.8x10.3x24.9mm |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
G5PZ-1A4-E-DC18 | Hersteller : Omron Electronics Inc-EMC Div |
Description: Sealed type with Explos protec Packaging: Tray Mounting Type: Through Hole Coil Voltage: 18VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Approval Agency: CQC, CSA, TUV, UR, VDE Relay Type: General Purpose Coil Current: 29.4 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy, Cadmium Free Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 20 A Switching Voltage: 250VAC - Max Must Release Voltage: 1.8 VDC Must Operate Voltage: 13.5 VDC Operate Time: 15 ms Release Time: 5 ms Load - Max Switching: 5000VA |
auf Bestellung 434 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
G5PZ-1A4-E DC18 | Hersteller : Omron Electronics Inc-EMC Div |
Description: SEALED 20A, 250VAC PCB RELAY Packaging: Tray Mounting Type: Through Hole Coil Voltage: 18VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 29.4 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy, Cadmium Free Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 20 A Switching Voltage: 250VAC - Max Must Release Voltage: 1.8 VDC Must Operate Voltage: 13.5 VDC Operate Time: 15 ms Release Time: 5 ms Approval Agency: CQC, CSA, TUV, UR, VDE Load - Max Switching: 5000VA |
auf Bestellung 982 Stücke: Lieferzeit 10-14 Tag (e) |
|
