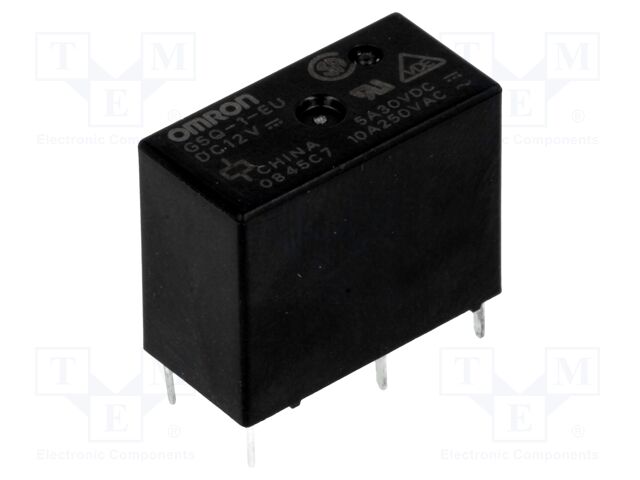

G5Q-1-EU 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
Mounting: PCB
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
DC contacts rating @R: 5A / 30V DC
Enclosure description: standard seal
Coil resistance: 360Ω
Contacts configuration: SPDT
AC contacts rating @R: 10A / 250V AC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: G5Q-EU
Rated coil voltage: 12V DC
Coil power consumption: 400mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 277V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Coil current: 33.3mA
Body dimensions: 20.3x10.3x15.8mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
Mounting: PCB
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
DC contacts rating @R: 5A / 30V DC
Enclosure description: standard seal
Coil resistance: 360Ω
Contacts configuration: SPDT
AC contacts rating @R: 10A / 250V AC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: G5Q-EU
Rated coil voltage: 12V DC
Coil power consumption: 400mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 277V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Coil current: 33.3mA
Body dimensions: 20.3x10.3x15.8mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G5Q-1-EU 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A, Mounting: PCB, Terminal pitch: 2.54mm, Operating temperature: -40...85°C, DC contacts rating @R: 5A / 30V DC, Enclosure description: standard seal, Coil resistance: 360Ω, Contacts configuration: SPDT, AC contacts rating @R: 10A / 250V AC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: G5Q-EU, Rated coil voltage: 12V DC, Coil power consumption: 400mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 277V AC, Contact current max.: 10A, Contact resistance: 100mΩ, Coil current: 33.3mA, Body dimensions: 20.3x10.3x15.8mm, Anzahl je Verpackung: 1 Stücke.
