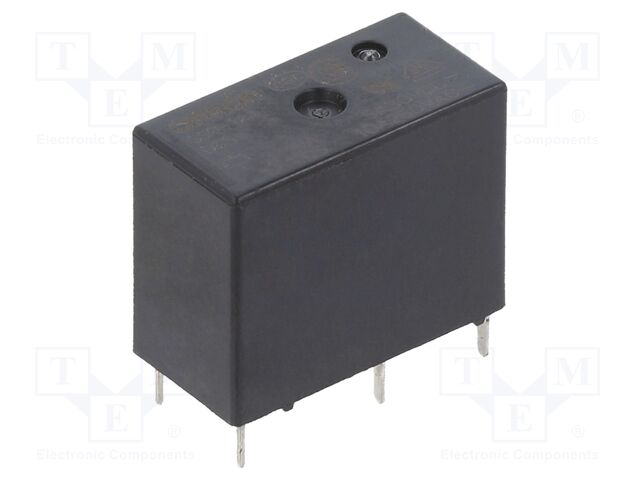

G5Q-1A4 5DC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 5V DC
Contact current max.: 5A
Manufacturer series: G5Q
Body dimensions: 20.3x10.3x15.8mm
Operating temperature: -40...85°C
Contact resistance: 100mΩ
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
Relay variant: miniature
Mounting: PCB
Terminal pitch: 7.62mm
Coil current: 40mA
| Anzahl | Preis |
|---|---|
| 36+ | 2 EUR |
| 41+ | 1.77 EUR |
| 46+ | 1.56 EUR |
| 100+ | 1.37 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5Q-1A4 5DC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 5V DC, Contact current max.: 5A, Manufacturer series: G5Q, Body dimensions: 20.3x10.3x15.8mm, Operating temperature: -40...85°C, Contact resistance: 100mΩ, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Switched voltage: max. 30V DC; max. 277V AC, Coil resistance: 125Ω, Relay variant: miniature, Mounting: PCB, Terminal pitch: 7.62mm, Coil current: 40mA.
