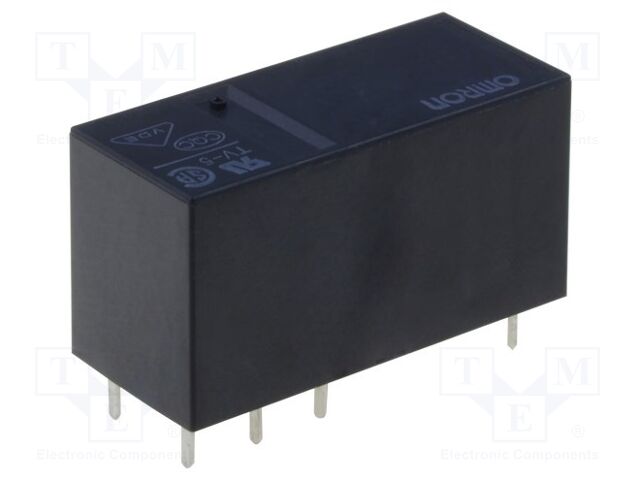

G5RL-1-E-HR 5VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 16A; G5RL
Manufacturer series: G5RL
Operating temperature: -40...70°C
Contacts configuration: SPDT
Terminal pitch: 5mm
Release time: 5ms
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Coil current: 80mA
Contact resistance: 100mΩ
Coil power consumption: 400mW
Rated coil voltage: 5V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 24V DC
AC contacts rating @R: 16A / 250V AC
Switched voltage: max. 24V DC; max. 250V AC
Max surge current: 50A
Coil resistance: 62.5Ω
Type of relay: electromagnetic
Leads: for PCB
Relay variant: inrush; miniature
Mounting: PCB
Anzahl je Verpackung: 1 Stücke
auf Bestellung 910 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 21+ | 3.53 EUR |
| 23+ | 3.22 EUR |
| 29+ | 2.5 EUR |
| 100+ | 2.33 EUR |
| 500+ | 2.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5RL-1-E-HR 5VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 16A; G5RL, Manufacturer series: G5RL, Operating temperature: -40...70°C, Contacts configuration: SPDT, Terminal pitch: 5mm, Release time: 5ms, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Coil current: 80mA, Contact resistance: 100mΩ, Coil power consumption: 400mW, Rated coil voltage: 5V DC, Contact current max.: 16A, DC contacts rating @R: 16A / 24V DC, AC contacts rating @R: 16A / 250V AC, Switched voltage: max. 24V DC; max. 250V AC, Max surge current: 50A, Coil resistance: 62.5Ω, Type of relay: electromagnetic, Leads: for PCB, Relay variant: inrush; miniature, Mounting: PCB, Anzahl je Verpackung: 1 Stücke.
