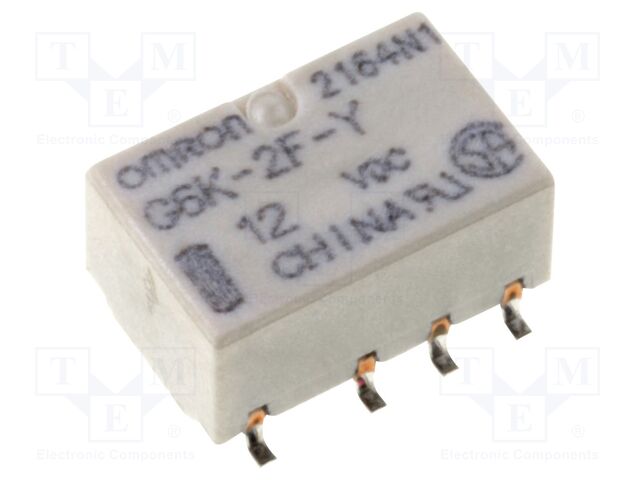

G6K-2F-Y 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 1A
AC contacts rating @R: 0.3A / 125V AC
DC contacts rating @R: 1A / 30V DC
Mounting: SMD
Relay variant: subminiature
Switched voltage: max. 60V DC; max. 125V AC
Operate time: 3ms
Release time: 3ms
Relay series: G6K
Operating temperature: -40...70°C
Body dimensions: 10x6.5x5.2mm
Coil resistance: 1315Ω
Contact resistance: 100mΩ
Coil power consumption: 100mW
Coil current: 9.1mA
Terminal pitch: 3.2mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 1A
AC contacts rating @R: 0.3A / 125V AC
DC contacts rating @R: 1A / 30V DC
Mounting: SMD
Relay variant: subminiature
Switched voltage: max. 60V DC; max. 125V AC
Operate time: 3ms
Release time: 3ms
Relay series: G6K
Operating temperature: -40...70°C
Body dimensions: 10x6.5x5.2mm
Coil resistance: 1315Ω
Contact resistance: 100mΩ
Coil power consumption: 100mW
Coil current: 9.1mA
Terminal pitch: 3.2mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 778 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
16+ | 4.53 EUR |
17+ | 4.33 EUR |
24+ | 2.99 EUR |
26+ | 2.83 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6K-2F-Y 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 12V DC, Contact current max.: 1A, AC contacts rating @R: 0.3A / 125V AC, DC contacts rating @R: 1A / 30V DC, Mounting: SMD, Relay variant: subminiature, Switched voltage: max. 60V DC; max. 125V AC, Operate time: 3ms, Release time: 3ms, Relay series: G6K, Operating temperature: -40...70°C, Body dimensions: 10x6.5x5.2mm, Coil resistance: 1315Ω, Contact resistance: 100mΩ, Coil power consumption: 100mW, Coil current: 9.1mA, Terminal pitch: 3.2mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G6K-2F-Y 12VDC nach Preis ab 2.83 EUR bis 8.53 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G6K-2F-Y 12VDC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 12V DC Contact current max.: 1A AC contacts rating @R: 0.3A / 125V AC DC contacts rating @R: 1A / 30V DC Mounting: SMD Relay variant: subminiature Switched voltage: max. 60V DC; max. 125V AC Operate time: 3ms Release time: 3ms Relay series: G6K Operating temperature: -40...70°C Body dimensions: 10x6.5x5.2mm Coil resistance: 1315Ω Contact resistance: 100mΩ Coil power consumption: 100mW Coil current: 9.1mA Terminal pitch: 3.2mm |
auf Bestellung 778 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
G6K-2F-Y 12VDC | Hersteller : Omron | Реле слабострумове; Uк, В = 125 (AC); 30 (DC); Iк = 1 А; Uн, В = 12; Р, Вт = 0,1; Тексп, °C = -40...+70; Тип монт. = smd; Форма конт. = DPDT; toff = 3 мс; Ro, Ом = 1 315; Час спрац. = 3 мс; 10x6.5x5.2mm |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
G6K-2F-Y 12VDC | Hersteller : Omron | Signal Relay 12VDC 1A DPDT(10x7.8x5.2)mm SMD |
