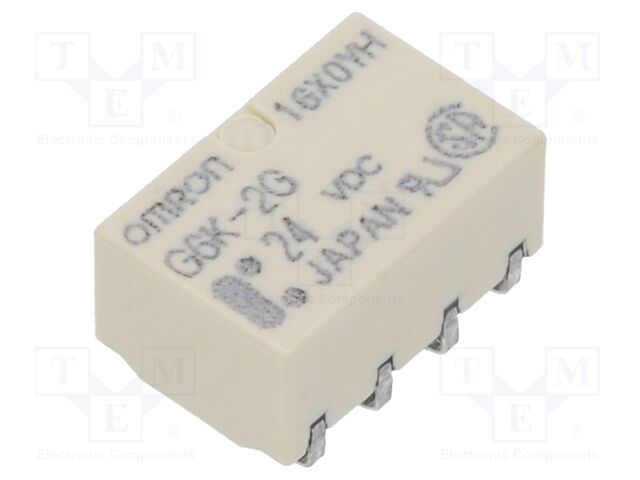

G6K-2G DC24 OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; G6K
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 1A
AC contacts rating @R: 0.3A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: G6K
Switched voltage: max. 60V DC; max. 125V AC
Relay variant: subminiature
Coil resistance: 5.22kΩ
Operate time: 3ms
Body dimensions: 10x6.5x5.2mm
Release time: 3ms
Operating temperature: -40...70°C
Contact resistance: 100mΩ
Terminal pitch: 3.2mm
Coil current: 4.6mA
Coil power consumption: 100mW
Anzahl je Verpackung: 1 Stücke
auf Bestellung 7 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 7+ | 10.21 EUR |
| 14+ | 5.11 EUR |
| 500+ | 3.29 EUR |
| 1000+ | 3.20 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6K-2G DC24 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; G6K, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V DC, Contact current max.: 1A, AC contacts rating @R: 0.3A / 125V AC, DC contacts rating @R: 1A / 30V DC, Manufacturer series: G6K, Switched voltage: max. 60V DC; max. 125V AC, Relay variant: subminiature, Coil resistance: 5.22kΩ, Operate time: 3ms, Body dimensions: 10x6.5x5.2mm, Release time: 3ms, Operating temperature: -40...70°C, Contact resistance: 100mΩ, Terminal pitch: 3.2mm, Coil current: 4.6mA, Coil power consumption: 100mW, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G6K-2G DC24 nach Preis ab 4.29 EUR bis 10.21 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
G6K-2G DC24 | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; G6K Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 1A AC contacts rating @R: 0.3A / 125V AC DC contacts rating @R: 1A / 30V DC Manufacturer series: G6K Switched voltage: max. 60V DC; max. 125V AC Relay variant: subminiature Coil resistance: 5.22kΩ Operate time: 3ms Body dimensions: 10x6.5x5.2mm Release time: 3ms Operating temperature: -40...70°C Contact resistance: 100mΩ Terminal pitch: 3.2mm Coil current: 4.6mA Coil power consumption: 100mW |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
G6K-2G DC24 | Hersteller : Omron Electronics Inc-EMC Div |
Description: RELAY TELECOM DPDT 1A 24V Packaging: Tube Mounting Type: Surface Mount Coil Voltage: 24VDC Operating Temperature: -40°C ~ 85°C Termination Style: J Lead Relay Type: Telecom Coil Current: 4.6 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver (Ag), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 1 A Switching Voltage: 125VAC, 60VDC - Max Must Release Voltage: 2.4 VDC Must Operate Voltage: 19.2 VDC Operate Time: 3 ms Release Time: 3 ms Part Status: Active Load - Max Switching: 125VA, 60W |
auf Bestellung 1022 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
G6K2GDC24 | Hersteller : Omron |
Signal Relay 24VDC 1A DPDT(10x6.5x5.4)mm SMD |
auf Bestellung 210 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
G6K-2G-DC24 | Hersteller : Omron Electronics |
Low Signal Relays - PCB InsideL NoLatch 2.54 DPDT 24VDC 100mW |
auf Bestellung 993 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
|
G6K2GDC24 | Hersteller : Omron |
Signal Relay 24VDC 1A DPDT(10x6.5x5.4)mm SMD |
Produkt ist nicht verfügbar |
