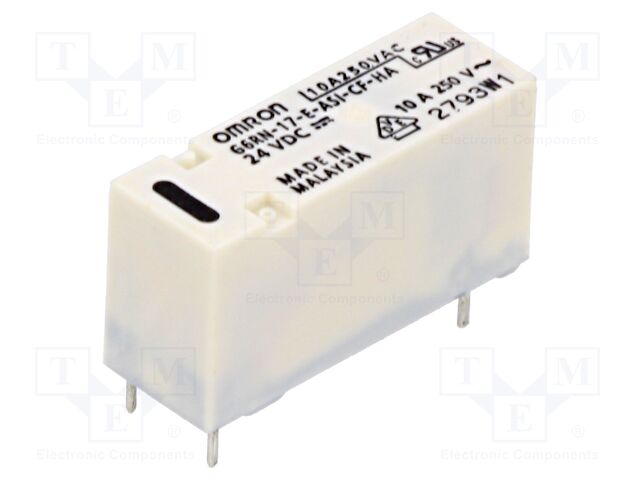

G6RN-17-E-ASI-CF-HA DC24 OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; G6RN
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 8A
Manufacturer series: G6RN
Switched voltage: max. 30V DC; max. 250V AC
Relay variant: miniature
Coil resistance: 2.62kΩ
Body dimensions: 28.5x10x15mm
Operating temperature: -40...85°C
Contact material: AgSnIn
Coil current: 9.2mA
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 5A / 30V DC
Coil power consumption: 220mW
Operate time: 15ms
Release time: 5ms
Contact resistance: 100mΩ
Mounting: PCB
Leads: for soldering
auf Bestellung 84 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 19+ | 3.86 EUR |
| 20+ | 3.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6RN-17-E-ASI-CF-HA DC24 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; G6RN, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 8A, Manufacturer series: G6RN, Switched voltage: max. 30V DC; max. 250V AC, Relay variant: miniature, Coil resistance: 2.62kΩ, Body dimensions: 28.5x10x15mm, Operating temperature: -40...85°C, Contact material: AgSnIn, Coil current: 9.2mA, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 5A / 30V DC, Coil power consumption: 220mW, Operate time: 15ms, Release time: 5ms, Contact resistance: 100mΩ, Mounting: PCB, Leads: for soldering, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G6RN-17-E-ASI-CF-HA DC24 nach Preis ab 2.77 EUR bis 6.12 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
G6RN-17-E-ASI-CF-HA DC24 | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; G6RN Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 8A Manufacturer series: G6RN Switched voltage: max. 30V DC; max. 250V AC Relay variant: miniature Coil resistance: 2.62kΩ Body dimensions: 28.5x10x15mm Operating temperature: -40...85°C Contact material: AgSnIn Coil current: 9.2mA AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 5A / 30V DC Coil power consumption: 220mW Operate time: 15ms Release time: 5ms Contact resistance: 100mΩ Mounting: PCB Leads: for soldering Anzahl je Verpackung: 1 Stücke |
auf Bestellung 84 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : Omron |
Miniature Power Relay |
auf Bestellung 80 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : Omron Electronics Inc-EMC Div |
Description: 10A Load, meet Anti-explosion Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CSA, UR, VDE Relay Type: General Purpose Coil Current: 9.2 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Tin Indium (AgSnIn) Contact Form: SPDT (1 Form C) Contact Rating (Current): 10 A Switching Voltage: 250VAC, 30VDC - Max Must Release Voltage: 2.4 VDC Must Operate Voltage: 16.8 VDC Operate Time: 15 ms Release Time: 5 ms Coil Insulation: Class F Load - Max Switching: 2500VA, 300W |
auf Bestellung 80 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : Omron |
Miniature Power Relay |
auf Bestellung 52 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
G6RN-17-E-ASI-CF-HA DC24 | Hersteller : Omron Electronics Inc-EMC Div |
Description: 1FORMC 10A, 250VAC PCB RELAY Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CSA, UR, VDE Relay Type: General Purpose Coil Current: 9.2 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Tin Indium (AgSnIn) Contact Form: SPDT (1 Form C) Contact Rating (Current): 10 A Switching Voltage: 250VAC, 30VDC - Max Must Release Voltage: 2.4 VDC Must Operate Voltage: 16.8 VDC Operate Time: 15 ms Release Time: 5 ms Coil Insulation: Class F |
auf Bestellung 1137 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
G6RN-17-E-ASI-CF-HA DC24 | Hersteller : Omron Electronics |
General Purpose Relays Power PCB Relay |
auf Bestellung 1123 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : OMRON ELECTRONIC COMPONENTS |
Description: OMRON ELECTRONIC COMPONENTS - G6RN-17-E-ASI-CF-HA-DC24 - Leistungsrelais, Miniatur, SPDT, 24 VDC, 10 A, G6RN Series, Durchsteckmontage, Monostabil tariffCode: 85364900 rohsCompliant: YES Relaisanschlüsse: PC-Pin hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Monostabil Kontaktmaterial: Silber-Zinn-Indium Kontaktstrom: 10A usEccn: EAR99 Spulenwiderstand: 2.62kohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Durchsteckmontage Produktpalette: G6RN Series productTraceability: No Spulenspannung: 24VDC Kontaktkonfiguration: SPDT Kontaktspannung V AC: 250V SVHC: To Be Advised |
auf Bestellung 30 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
|
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : Omron |
Miniature Power Relay |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
|
G6RN-17-E-ASI-CF-HA-DC24 | Hersteller : Omron |
Miniature Power Relay |
Produkt ist nicht verfügbar |
|||||||||||||||||
| G6RN17EASICFHADC24 | Hersteller : Omron Electronics |
General Purpose Relays PCB-POWER RELAY |
Produkt ist nicht verfügbar |
