Produkte > OMRON ELECTRONIC COMPONENTS > G6RN-1A 24VDC

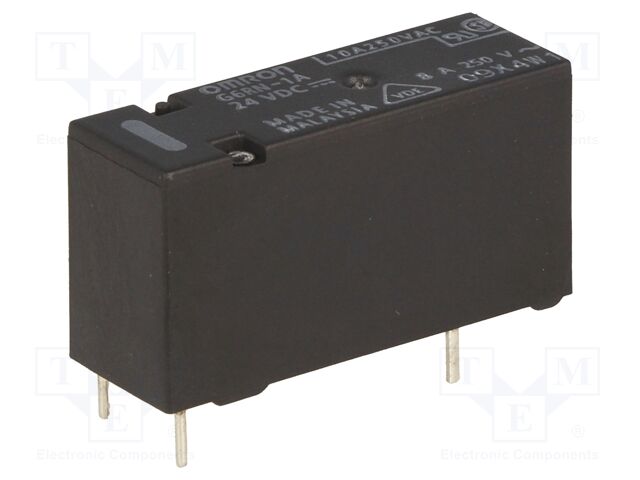

G6RN-1A 24VDC

G6RN-1A 24VDC OMRON Electronic Components

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA2D3D47BE1CF00D6&compId=G6RN.pdf?ci_sign=7d1982d4651b2ada376404818e490dfc847cbe6a Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 8A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 8A
Manufacturer series: G6RN
Relay variant: miniature
Mounting: PCB
Contact material: Ag/Au
Operating temperature: -40...85°C
AC contacts rating @R: 8A / 250V AC
Switched voltage: max. 30V DC; max. 250V AC
Coil resistance: 2.62kΩ
Leads: for soldering
Terminal pitch: 5.1mm
Release time: 5ms
Coil current: 9.2mA
Operate time: 15ms
Body dimensions: 28.5x10x15mm
Contact resistance: 100mΩ
Coil power consumption: 220mW
DC contacts rating @R: 5A / 30V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1196 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
27+2.75 EUR
29+2.5 EUR
40+1.82 EUR
42+1.72 EUR
100+1.7 EUR
500+1.67 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details G6RN-1A 24VDC OMRON Electronic Components

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 8A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 8A, Manufacturer series: G6RN, Relay variant: miniature, Mounting: PCB, Contact material: Ag/Au, Operating temperature: -40...85°C, AC contacts rating @R: 8A / 250V AC, Switched voltage: max. 30V DC; max. 250V AC, Coil resistance: 2.62kΩ, Leads: for soldering, Terminal pitch: 5.1mm, Release time: 5ms, Coil current: 9.2mA, Operate time: 15ms, Body dimensions: 28.5x10x15mm, Contact resistance: 100mΩ, Coil power consumption: 220mW, DC contacts rating @R: 5A / 30V DC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote G6RN-1A 24VDC nach Preis ab 1.67 EUR bis 3.28 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
G6RN-1A 24VDC G6RN-1A 24VDC Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA2D3D47BE1CF00D6&compId=G6RN.pdf?ci_sign=7d1982d4651b2ada376404818e490dfc847cbe6a Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 8A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 8A
Manufacturer series: G6RN
Relay variant: miniature
Mounting: PCB
Contact material: Ag/Au
Operating temperature: -40...85°C
AC contacts rating @R: 8A / 250V AC
Switched voltage: max. 30V DC; max. 250V AC
Coil resistance: 2.62kΩ
Leads: for soldering
Terminal pitch: 5.1mm
Release time: 5ms
Coil current: 9.2mA
Operate time: 15ms
Body dimensions: 28.5x10x15mm
Contact resistance: 100mΩ
Coil power consumption: 220mW
DC contacts rating @R: 5A / 30V DC
auf Bestellung 1196 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
27+2.75 EUR
29+2.5 EUR
40+1.82 EUR
42+1.72 EUR
100+1.7 EUR
500+1.67 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
G6RN-1A 24VDC Hersteller : Omron Power Relay 24VDC 8A SPST-NO(28.5mm 10mm 15mm) THT
auf Bestellung 1201 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
45+3.28 EUR
100+2.89 EUR
500+2.57 EUR
Mindestbestellmenge: 45
Im Einkaufswagen  Stück im Wert von  UAH
