Produkte > OMRON ELECTRONIC COMPONENTS > G6S-2F 5VDC

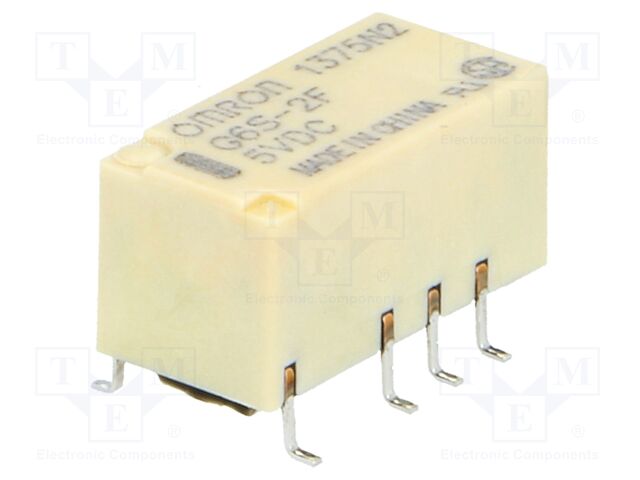

G6S-2F 5VDC

G6S-2F 5VDC OMRON Electronic Components

pVersion=0046&contRep=ZT&docId=E2396B6A2DB4C6F1A303005056AB0C4F&compId=G6S.PDF?ci_sign=5c9cedfd18ac2c67af19d55e04fd7dcc6540cb9b Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; G6S
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: G6S
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: SMD
Operate time: 4ms
Body dimensions: 14.8x7.3x9.2mm
Release time: 4ms
Coil power consumption: 140mW
Operating temperature: -40...85°C
Contact resistance: 75mΩ
Terminal pitch: 2.54mm
Coil resistance: 250Ω
Coil current: 20mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 103 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
16+4.75 EUR
17+4.42 EUR
18+4.18 EUR
1000+4.02 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details G6S-2F 5VDC OMRON Electronic Components

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; G6S, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Manufacturer series: G6S, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: subminiature, Mounting: SMD, Operate time: 4ms, Body dimensions: 14.8x7.3x9.2mm, Release time: 4ms, Coil power consumption: 140mW, Operating temperature: -40...85°C, Contact resistance: 75mΩ, Terminal pitch: 2.54mm, Coil resistance: 250Ω, Coil current: 20mA, Anzahl je Verpackung: 1 Stücke.
