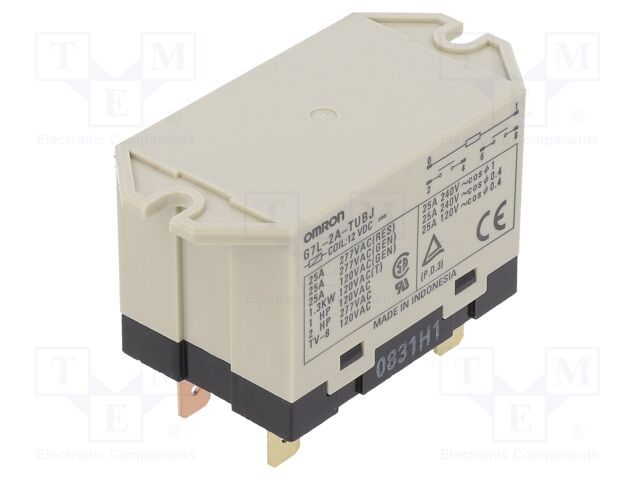

G7L-2A-TUBJ DC12 Omron Electronics Inc-EMC Div
Hersteller: Omron Electronics Inc-EMC DivDescription: DPST-NO,QC,UB,TB 12VDC
Features: Test Button
Packaging: Bulk
Mounting Type: Chassis Mount
Coil Voltage: 12VDC
Operating Temperature: -25°C ~ 60°C
Termination Style: Quick Connect - 0.250" (6.3mm)
Approval Agency: CSA, TUV, UR
Relay Type: General Purpose
Coil Current: 158 mA
Coil Type: Non Latching
Contact Material: Silver Alloy
Contact Form: DPST-NO (2 Form A)
Contact Rating (Current): 25 A
Switching Voltage: 250VAC - Max
Must Release Voltage: 1.8 VDC
Must Operate Voltage: 9 VDC
Operate Time: 30 ms
Release Time: 30 ms
Load - Max Switching: 6250VA
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G7L-2A-TUBJ DC12 Omron Electronics Inc-EMC Div
Category: Power Electromagnetic Relays, Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A, Type of relay: electromagnetic, Contacts configuration: DPST-NO, Rated coil voltage: 12V DC, Contact current max.: 25A, Coil current: 158mA, Switched voltage: max. 250V AC, Relay variant: power, Manufacturer series: G7L, Mounting: on panel, Body dimensions: 68.5x33.5x47mm, AC contacts rating @R: 25A / 220V AC, Coil resistance: 75Ω, Leads: connectors, Leads dimensions: 6.35x0.8mm, Contact resistance: 50mΩ, Operating temperature: -25...60°C, Coil power consumption: 1.9W.
Weitere Produktangebote G7L-2A-TUBJ DC12
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
G7L-2A-TUBJ DC12 | Hersteller : OMRON Electronic Components |
Category: Power Electromagnetic Relays Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 12V DC Contact current max.: 25A Coil current: 158mA Switched voltage: max. 250V AC Relay variant: power Manufacturer series: G7L Mounting: on panel Body dimensions: 68.5x33.5x47mm AC contacts rating @R: 25A / 220V AC Coil resistance: 75Ω Leads: connectors Leads dimensions: 6.35x0.8mm Contact resistance: 50mΩ Operating temperature: -25...60°C Coil power consumption: 1.9W |
