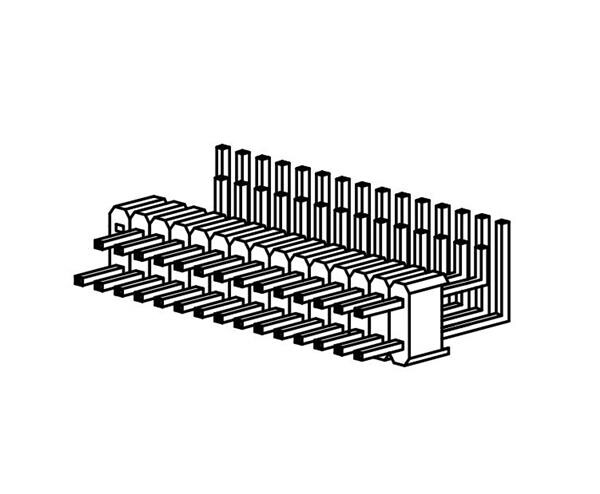

G802030220229EU Amphenol

Description: PIN HEADER 1.27MM PITCH X2.54MM, Packaging: Tube, Connector Type: Header, Cuttable, Voltage Rating: 250VAC, Current Rating (Amps): 1.5A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 30, Number of Rows: 2, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Contact Shape: Square, Contact Length - Post: 0.083" (2.11mm), Insulation Height: 0.197" (5.00mm), Shrouding: Unshrouded, Insulation Material: Polyamide (PA4T), Nylon 4T, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.106" (2.70mm).
