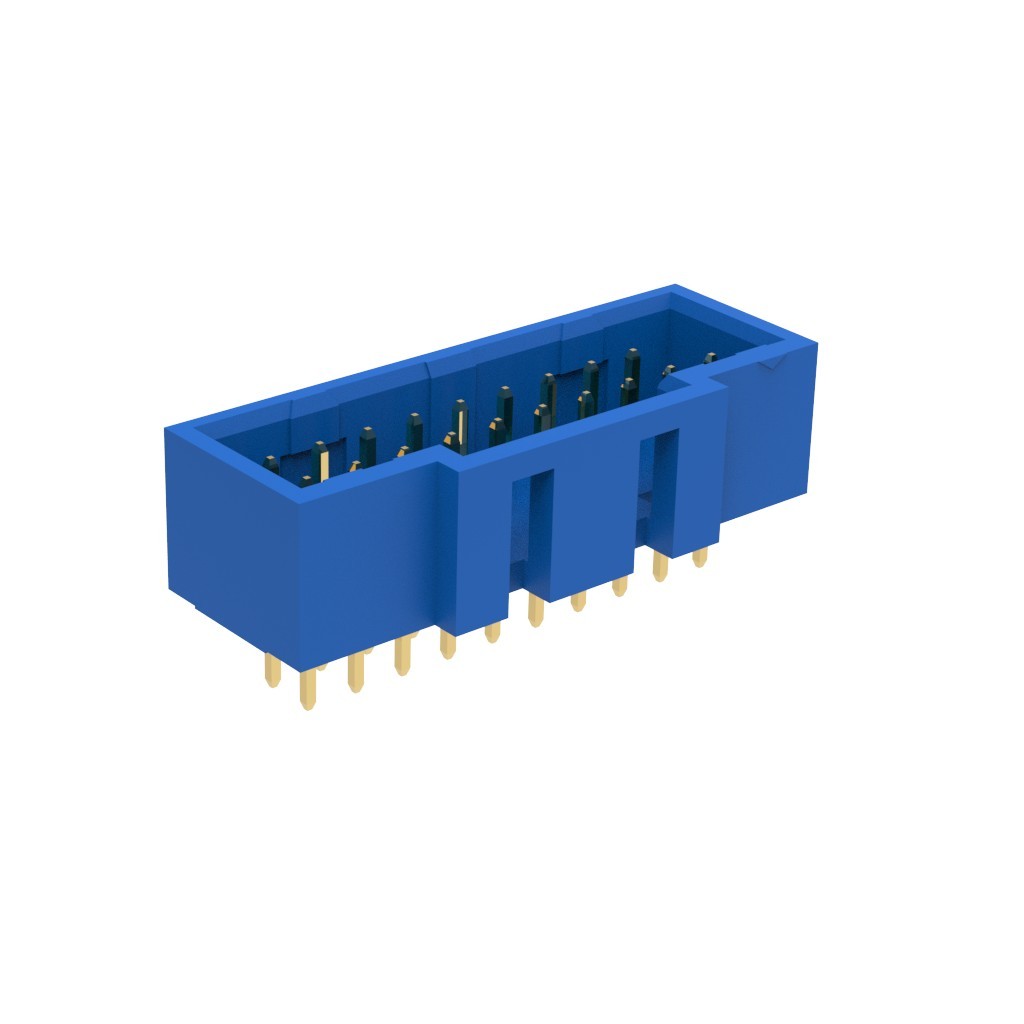

G823J201240CHR Amphenol Communications Solutions

Description: BOX HEADER FOR USB 3.0,2.0MM PIT, Features: Keying Slot, Packaging: Tray, Connector Type: Header, Voltage Rating: 30VAC, Current Rating (Amps): 1.5A (AC/DC), Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Blue, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.228" (5.80mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.327" (8.30mm), Insulation Material: Polyamide (PA9T), Nylon 9T, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.157" (4.00mm).
