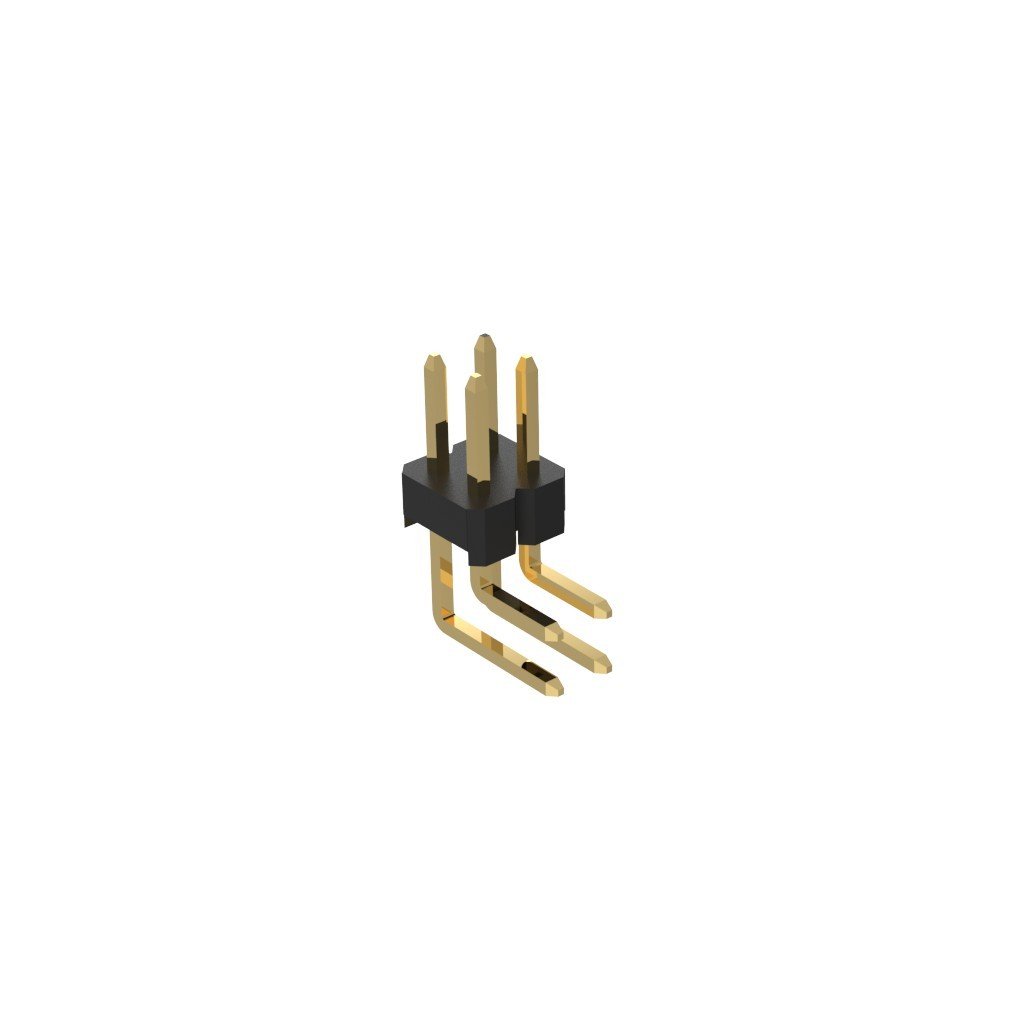

G8250042110YEU Amphenol ICC (Commercial Products)

Description: PIN HEADER 2.0MM PITCH R/A DIP,2, Packaging: Bag, Connector Type: Header, Cuttable, Voltage Rating: 250VDC, Current Rating (Amps): 1.5A, Mounting Type: Through Hole, Right Angle, Number of Positions: 4, Number of Rows: 2, Style: Board to Board, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.157" (4.00mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.157" (4.00mm).
