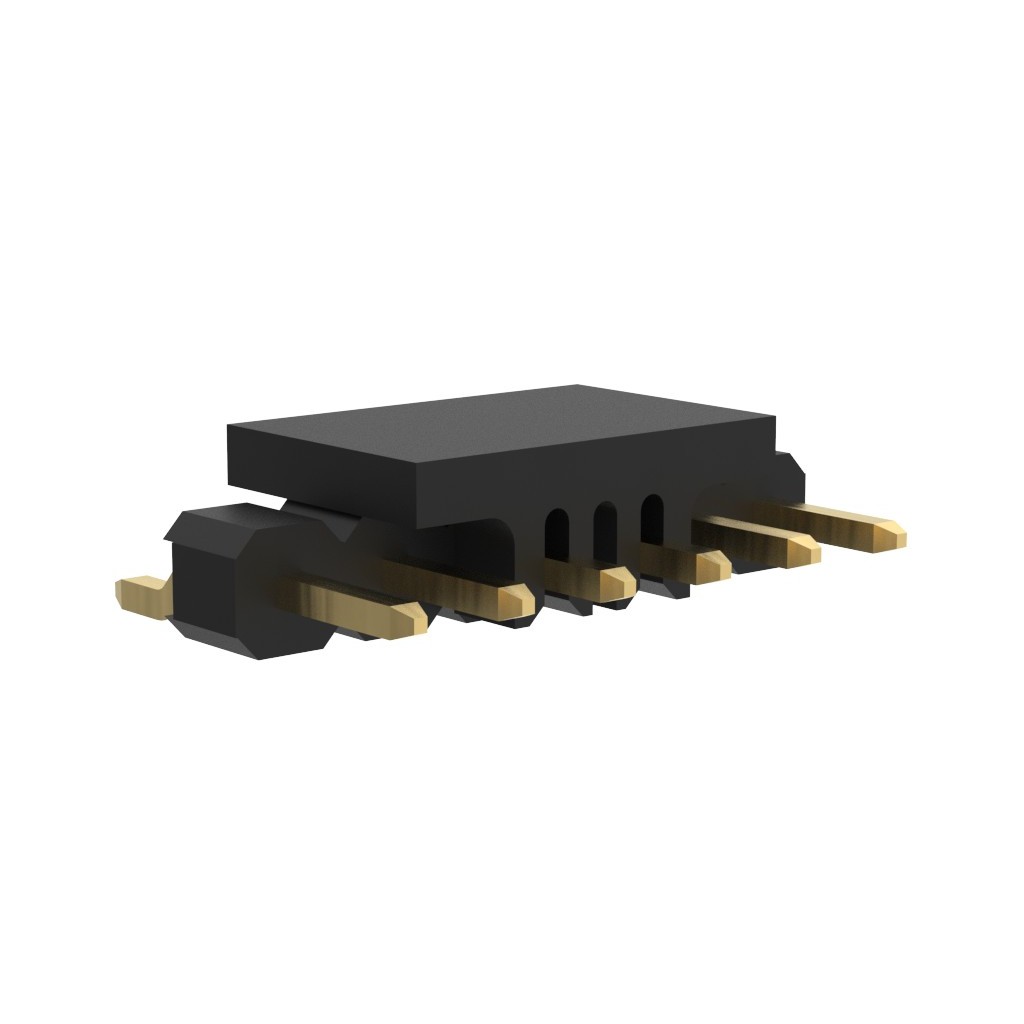

G825N06211DEU Amphenol ICC (Commercial Products)

Description: PIN HEADER 2.0MM PITCH R/A SMT,1, Features: Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Voltage Rating: 250VDC, Current Rating (Amps): 1.5A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 6, Number of Rows: 1, Style: Board to Board, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Contact Shape: Square, Insulation Height: 0.079" (2.00mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.126" (3.20mm).
