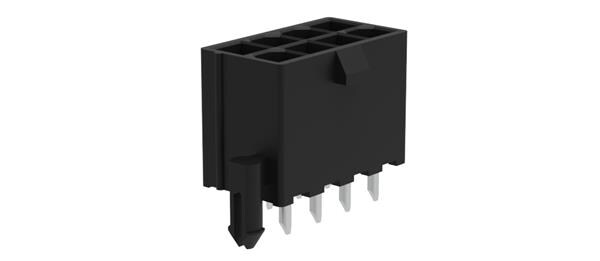

G87MP081215C1HR Amphenol ICC (Commercial Products)

Description: MINI POWER PLUS 4.2MM, Features: Board Guide, Packaging: Tray, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): 13A per Contact, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Cable/Wire, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.504" (12.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.165" (4.20mm).
