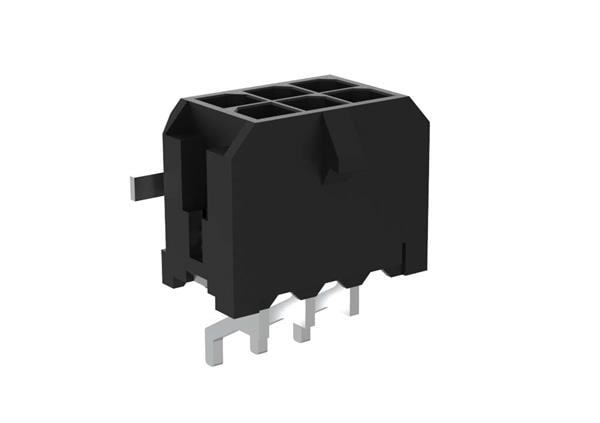

G881MA06002S1EU Amphenol ICC (Commercial Products)

Description: MICRO POWER HEADER 2X3PIN R/A, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 7A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.344" (8.75mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.118" (3.00mm).
