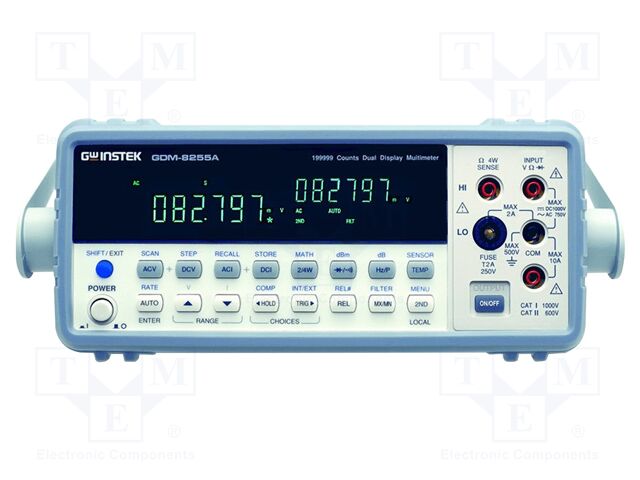

GDM-8255A

Hersteller: GW INSTEK
Category: Benchtop digital multimeters
Description: Benchtop multimeter; VFD; 5,5 digit; True RMS; Software: included
Type of meter: benchtop multimeter
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Kind of display used: VFD
Display parameters: 5,5 digit
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±0.012%
AC voltage measuring range: 100mV; 1V; 10V; 100V; 750V
AC voltage measuring accuracy: ±(0.2%...3%)
DC current measuring range: 10mA; 100mA; 1A; 10A
DC current measuring accuracy: ±(0.05% + 15 digit) @(10mA...100mA); ±(0.2% + 5 digit) @(1A...10A)
AC current measuring range: 10mA; 100mA; 1A; 10A
AC current measuring accuracy: ±(0.5% + 100 digit)@(10mA...100mA); ±(1% + 100 digit)@(1A...10A)
True effective value measurement: True RMS
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Diode test: 0.5mA @2V
Continuity test: acoustic indication
Standard equipment: cable GTL-117; cable GTL-247; mains cable; user's manual
Connectors for the country: Europe
Temperature measuring range (with J-type thermocouple): 0...300°C
Interface: RS232; USB
Software: included
Temperature measuring range (with K-type thermocouple): 0...300°C
Temperature measuring range (with T-type thermocouple): 0...300°C
