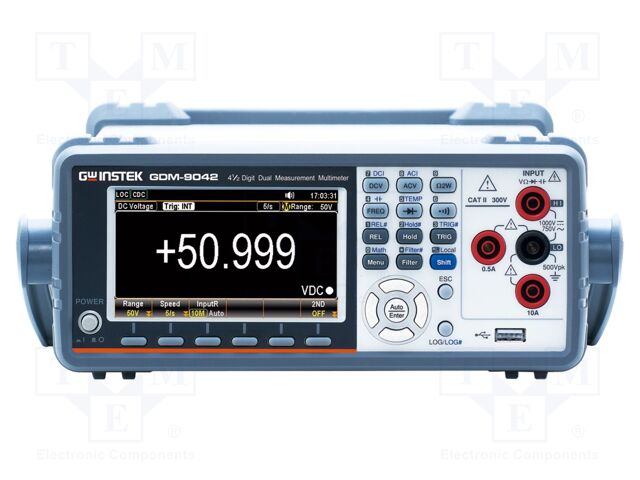

GDM-9042 GW INSTEK

Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD TFT 4,3"; 5 digits (50000); True RMS, Measuring instrument features: automatic Identification (A.I.) function; HOLD function; measures two different parameters of the same signal; MIN/MAX function; operates with thermocouple types: J, K, T; REL function; selectable measurements speeds; usb storage for storage and recall data, Continuity test: acoustic indication, Type of meter: benchtop multimeter, Interface: USB, Standard equipment: cable GTL-207; mains cable; test leads, Connectors for the country: Europe, Kind of display used: LCD TFT 4,3", True effective value measurement: True RMS, Temperature measuring range (with K-type thermocouple): -200...300°C, Temperature measuring range (with J-type thermocouple): -200...300°C, Temperature measuring range (with T-type thermocouple): -200...300°C, AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 5A; 10A, DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A, AC voltage measuring range: 500mV; 5V; 50V; 500V; 750V, DC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV, Diode test: 1mA @5V, Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 100MΩ, DC voltage measuring accuracy: ±(0.02% + 4 digit), DC current measuring accuracy: ±(0.05% + 4 digit) @5mA; ±(0.05% + 4 digit) @50mA; ±(0.05% + 5 digit) @500µA; ±(0.1% + 4 digit) @500mA; ±(0.25% + 5 digit) @5A; ±(0.25% + 5 digit) @10A, AC voltage measuring accuracy: ±(0.35% + 15 digit), AC current measuring accuracy: ±(0.5% + 20 digit)@(5mA...500mA); ±(0.5% + 30 digit)@(5A...10A); ±(0.5% + 40 digit)@500µA, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature, Display parameters: 5 digits (50000), Anzahl je Verpackung: 1 Stücke.
