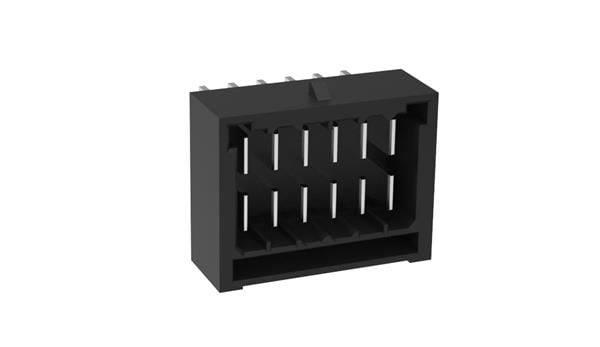

GPFLD12000000HR AMPHENOL COMMUNICATIONS SOLUTIONS
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - GPFLD12000000HR - Rechtecksteckverbinder, 24 Kontakt(e), TOPFLIGHT GPFLD Series, Leiterplattenmontage
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Matt verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktausführung: Stiftkontakt
Kontaktmaterial: Messing, Kupferlegierung
isCanonical: Y
Ausführung: Stiftleiste
Steckverbindermontage: Leiterplattenmontage
Steckverbindergehäusegröße: -
Anzahl der Kontakte: 24Kontakt(e)
SVHC: No SVHC (25-Jun-2025)
Produktpalette: TOPFLIGHT GPFLD Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 3Reihe(n)
Rastermaß: -
| Anzahl | Privatkunde |
|---|---|
| 19+ | 13.7 EUR |
| 23+ | 10.45 EUR |
| 100+ | 8.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details GPFLD12000000HR AMPHENOL COMMUNICATIONS SOLUTIONS
Description: TOPFLIGHT POWER, Packaging: Tape & Reel (TR), Features: Board Guide, Connector Type: Header, Voltage Rating: 250VAC/DC, Current Rating (Amps): 14A, Mounting Type: Through Hole, Right Angle, Number of Positions: 24 (12 + 12 Power), Number of Rows: 3, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Copper, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Contact Shape: Rectangular, Contact Length - Post: 0.102" (2.60mm), Insulation Height: 0.727" (18.47mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic.
Weitere Produktangebote GPFLD12000000HR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
GPFLD12000000HR | Amphenol ICC (Commercial Products) |
Description: TOPFLIGHT POWER Packaging: Tape & Reel (TR) Features: Board Guide Connector Type: Header Voltage Rating: 250VAC/DC Current Rating (Amps): 14A Mounting Type: Through Hole, Right Angle Number of Positions: 24 (12 + 12 Power) Number of Rows: 3 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 85°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass, Copper Insulation Color: Black Pitch - Mating: 0.118" (3.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 100.0µin (2.54µm) Contact Finish - Post: Tin Contact Shape: Rectangular Contact Length - Post: 0.102" (2.60mm) Insulation Height: 0.727" (18.47mm) Shrouding: Shrouded - 4 Wall Insulation Material: Thermoplastic |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 80 Stücke Im Einkaufswagen Stück im Wert von UAH |
|
|
GPFLD12000000HR | Amphenol ICC (Commercial Products) |
Description: TOPFLIGHT POWER Packaging: Cut Tape (CT) Features: Board Guide Connector Type: Header Voltage Rating: 250VAC/DC Current Rating (Amps): 14A Mounting Type: Through Hole, Right Angle Number of Positions: 24 (12 + 12 Power) Number of Rows: 3 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 85°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass, Copper Insulation Color: Black Pitch - Mating: 0.118" (3.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 100.0µin (2.54µm) Contact Finish - Post: Tin Contact Shape: Rectangular Contact Length - Post: 0.102" (2.60mm) Insulation Height: 0.727" (18.47mm) Shrouding: Shrouded - 4 Wall Insulation Material: Thermoplastic |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
 |
GPFLD12000000HR | Amphenol |
|
Produkt ist nicht verfügbar |
Mindestbestellmenge: 4000 Stücke Im Einkaufswagen Stück im Wert von UAH |
|
|
GPFLD12000000HR | Amphenol Commercial Products |
Power to the Board Topflight power 12P12S R/A header |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| GPFLD12000000HR |
|
Hersteller: Amphenol ICC (Commercial Products)
Description: TOPFLIGHT POWER
Packaging: Tape & Reel (TR)
Features: Board Guide
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 14A
Mounting Type: Through Hole, Right Angle
Number of Positions: 24 (12 + 12 Power)
Number of Rows: 3
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass, Copper
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.102" (2.60mm)
Insulation Height: 0.727" (18.47mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Description: TOPFLIGHT POWER
Packaging: Tape & Reel (TR)
Features: Board Guide
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 14A
Mounting Type: Through Hole, Right Angle
Number of Positions: 24 (12 + 12 Power)
Number of Rows: 3
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass, Copper
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.102" (2.60mm)
Insulation Height: 0.727" (18.47mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Produkt ist nicht verfügbar
Mindestbestellmenge: 80 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| GPFLD12000000HR |
|
Hersteller: Amphenol ICC (Commercial Products)
Description: TOPFLIGHT POWER
Packaging: Cut Tape (CT)
Features: Board Guide
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 14A
Mounting Type: Through Hole, Right Angle
Number of Positions: 24 (12 + 12 Power)
Number of Rows: 3
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass, Copper
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.102" (2.60mm)
Insulation Height: 0.727" (18.47mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Description: TOPFLIGHT POWER
Packaging: Cut Tape (CT)
Features: Board Guide
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 14A
Mounting Type: Through Hole, Right Angle
Number of Positions: 24 (12 + 12 Power)
Number of Rows: 3
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass, Copper
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.102" (2.60mm)
Insulation Height: 0.727" (18.47mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| GPFLD12000000HR |
|
Hersteller: Amphenol
Produkt ist nicht verfügbar
Mindestbestellmenge: 4000 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| GPFLD12000000HR |
|
Hersteller: Amphenol Commercial Products
Power to the Board Topflight power 12P12S R/A header
Power to the Board Topflight power 12P12S R/A header
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
