Produkte > ONPOW > GQ16H-10/J/N

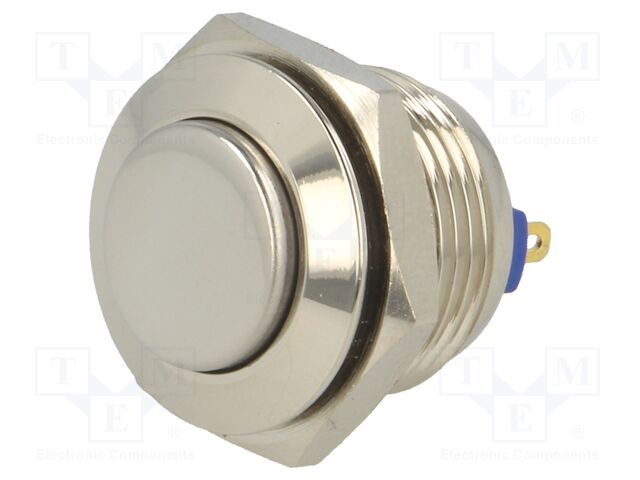

GQ16H-10/J/N

GQ16H-10/J/N ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92974085DE0C7&compId=GQ16H-10J.pdf?ci_sign=1f2144ccd8e7b26ddc49f3f1316239fa373f7bb1 Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
Switching method: OFF-(ON)
IP rating: IP65
Illumination: none
Leads: for soldering
Button shape: prominent
Mounting hole diameter: Ø16mm
Body colour: silver
Operating temperature: -20...55°C
Max. contact resistance:: 50mΩ
Operating Force: 4N
Test voltage: 1.5kV
Electrical life: 200000 cycles
Mechanical durability: 1000000 cycles
Body material: nickel plated brass
Related items: M12-16H
Ring shape: rounded
Contact material: silver alloy
auf Bestellung 244 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
24+3.05 EUR
25+2.89 EUR
33+2.2 EUR
35+2.07 EUR
Mindestbestellmenge: 24
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GQ16H-10/J/N ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, DC contacts rating @R: 2A / 36V DC, Switching method: OFF-(ON), IP rating: IP65, Illumination: none, Leads: for soldering, Button shape: prominent, Mounting hole diameter: Ø16mm, Body colour: silver, Operating temperature: -20...55°C, Max. contact resistance:: 50mΩ, Operating Force: 4N, Test voltage: 1.5kV, Electrical life: 200000 cycles, Mechanical durability: 1000000 cycles, Body material: nickel plated brass, Related items: M12-16H, Ring shape: rounded, Contact material: silver alloy.

Weitere Produktangebote GQ16H-10/J/N nach Preis ab 6.34 EUR bis 6.34 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
GQ16H-10/J/N Hersteller : ONPOW 16mm; momentary; OFF-(ON); SPST-NO; nickel plated brass; silver; pin terminals; protruding button; 2A; 36VDC; IP65; lifetime: 1000000 cycles Vandal proof push button switch; GQ16H-10/J/N PRZ GQ16H-10/J/N
Anzahl je Verpackung: 5 Stücke
auf Bestellung 16 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+6.34 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
