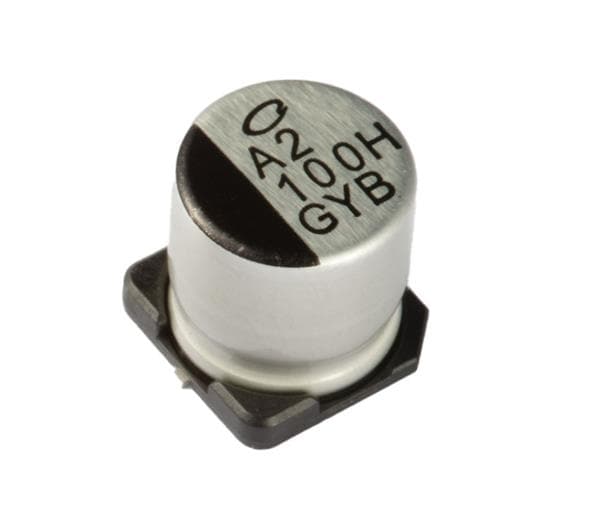

GYB1V680MCW1GS Nichicon
Hersteller: Nichicon
Aluminium Organic Polymer Capacitors 35VDC 68uF 20% Vibration Resistance AEC-Q200
| Anzahl | Preis |
|---|---|
| 2+ | 1.72 EUR |
| 10+ | 1.17 EUR |
| 100+ | 0.96 EUR |
| 500+ | 0.76 EUR |
| 900+ | 0.71 EUR |
| 1800+ | 0.62 EUR |
| 4500+ | 0.57 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details GYB1V680MCW1GS Nichicon
Description: CAP ALUM HYBRID 68UF 20% 35V SMD, Ripple Current @ High Frequency: 2 A @ 100 kHz, Ripple Current @ Low Frequency: 300 mA @ 120 Hz, Voltage - Rated: 35 V, Capacitance: 68 µF, Height - Seated (Max): 0.323" (8.20mm), Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm), Lifetime @ Temp.: 10000 Hrs @ 105°C, ESR (Equivalent Series Resistance): 35mOhm, Ratings: AEC-Q200, Applications: General Purpose, Operating Temperature: -55°C ~ 105°C, Type: Hybrid, Mounting Type: Surface Mount, Size / Dimension: 0.248" Dia (6.30mm), Package / Case: Radial, Can - SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR).
Weitere Produktangebote GYB1V680MCW1GS nach Preis ab 1.03 EUR bis 2.04 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GYB1V680MCW1GS | Nichicon |
Description: CAP ALUM HYBRID 68UF 20% 35V SMD Ripple Current @ Low Frequency: 300 mA @ 120 Hz Voltage - Rated: 35 V Capacitance: 68 µF Height - Seated (Max): 0.323" (8.20mm) Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm) Lifetime @ Temp.: 10000 Hrs @ 105°C ESR (Equivalent Series Resistance): 35mOhm Ratings: AEC-Q200 Applications: General Purpose Operating Temperature: -55°C ~ 105°C Type: Hybrid Mounting Type: Surface Mount Size / Dimension: 0.248" Dia (6.30mm) Package / Case: Radial, Can - SMD Tolerance: ±20% Packaging: Cut Tape (CT) Ripple Current @ High Frequency: 2 A @ 100 kHz |
auf Bestellung 600 Stücke: Lieferzeit 10-14 Tag (e) |
|
| GYB1V680MCW1GS |
|
Hersteller: Nichicon
Description: CAP ALUM HYBRID 68UF 20% 35V SMD
Ripple Current @ Low Frequency: 300 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 68 µF
Height - Seated (Max): 0.323" (8.20mm)
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Lifetime @ Temp.: 10000 Hrs @ 105°C
ESR (Equivalent Series Resistance): 35mOhm
Ratings: AEC-Q200
Applications: General Purpose
Operating Temperature: -55°C ~ 105°C
Type: Hybrid
Mounting Type: Surface Mount
Size / Dimension: 0.248" Dia (6.30mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Cut Tape (CT)
Ripple Current @ High Frequency: 2 A @ 100 kHz
Description: CAP ALUM HYBRID 68UF 20% 35V SMD
Ripple Current @ Low Frequency: 300 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 68 µF
Height - Seated (Max): 0.323" (8.20mm)
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Lifetime @ Temp.: 10000 Hrs @ 105°C
ESR (Equivalent Series Resistance): 35mOhm
Ratings: AEC-Q200
Applications: General Purpose
Operating Temperature: -55°C ~ 105°C
Type: Hybrid
Mounting Type: Surface Mount
Size / Dimension: 0.248" Dia (6.30mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Cut Tape (CT)
Ripple Current @ High Frequency: 2 A @ 100 kHz
auf Bestellung 600 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 9+ | 2.04 EUR |
| 13+ | 1.41 EUR |
| 50+ | 1.13 EUR |
| 100+ | 1.03 EUR |
