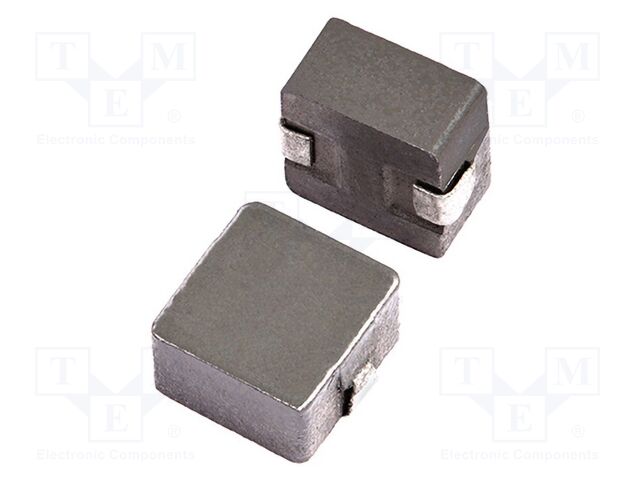

HCM0503-R35-R Eaton - Electronics Division
Hersteller: Eaton - Electronics Division
Description: FIXED IND 350NH 16.6A 4.29 MOHM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: 2020 (5050 Metric)
Size / Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -55°C ~ 125°C
DC Resistance (DCR): 4.29mOhm Max
Current - Saturation (Isat): 14.9A
Material - Core: Iron Powder
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.118" (3.00mm)
Part Status: Active
Inductance: 350 nH
Current Rating (Amps): 16.6 A
Produktrezensionen
Produktbewertung abgeben
Technische Details HCM0503-R35-R Eaton - Electronics Division
Description: FIXED IND 350NH 16.6A 4.29 MOHM, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: 2020 (5050 Metric), Size / Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Drum Core, Wirewound, Operating Temperature: -55°C ~ 125°C, DC Resistance (DCR): 4.29mOhm Max, Current - Saturation (Isat): 14.9A, Material - Core: Iron Powder, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.118" (3.00mm), Part Status: Active, Inductance: 350 nH, Current Rating (Amps): 16.6 A.
Weitere Produktangebote HCM0503-R35-R nach Preis ab 0.73 EUR bis 2.12 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HCM0503-R35-R | Eaton Electronics |
Power Inductors - SMD 0.35uH 14.9A SMD HIGH CURRENT |
auf Bestellung 697 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
HCM0503-R35-R | Eaton - Electronics Division |
Description: FIXED IND 350NH 16.6A 4.29 MOHM Current Rating (Amps): 16.6 A Inductance: 350 nH Part Status: Active Height - Seated (Max): 0.118" (3.00mm) Inductance Frequency - Test: 100 kHz Material - Core: Iron Powder Current - Saturation (Isat): 14.9A DC Resistance (DCR): 4.29mOhm Max Operating Temperature: -55°C ~ 125°C Type: Drum Core, Wirewound Shielding: Shielded Mounting Type: Surface Mount Size / Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm) Package / Case: 2020 (5050 Metric) Tolerance: ±20% Packaging: Cut Tape (CT) |
auf Bestellung 3716 Stücke: Lieferzeit 10-14 Tag (e) |
|
| HCM0503-R35-R |
|
Hersteller: Eaton Electronics
Power Inductors - SMD 0.35uH 14.9A SMD HIGH CURRENT
Power Inductors - SMD 0.35uH 14.9A SMD HIGH CURRENT
auf Bestellung 697 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.4 EUR |
| 10+ | 1.33 EUR |
| 1000+ | 0.79 EUR |
| 2000+ | 0.77 EUR |
| 4000+ | 0.73 EUR |
| HCM0503-R35-R |
|
Hersteller: Eaton - Electronics Division
Description: FIXED IND 350NH 16.6A 4.29 MOHM
Current Rating (Amps): 16.6 A
Inductance: 350 nH
Part Status: Active
Height - Seated (Max): 0.118" (3.00mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Iron Powder
Current - Saturation (Isat): 14.9A
DC Resistance (DCR): 4.29mOhm Max
Operating Temperature: -55°C ~ 125°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm)
Package / Case: 2020 (5050 Metric)
Tolerance: ±20%
Packaging: Cut Tape (CT)
Description: FIXED IND 350NH 16.6A 4.29 MOHM
Current Rating (Amps): 16.6 A
Inductance: 350 nH
Part Status: Active
Height - Seated (Max): 0.118" (3.00mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Iron Powder
Current - Saturation (Isat): 14.9A
DC Resistance (DCR): 4.29mOhm Max
Operating Temperature: -55°C ~ 125°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm)
Package / Case: 2020 (5050 Metric)
Tolerance: ±20%
Packaging: Cut Tape (CT)
auf Bestellung 3716 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 10+ | 2.12 EUR |
| 11+ | 1.96 EUR |
| 25+ | 1.81 EUR |
| 50+ | 1.51 EUR |
| 100+ | 1.42 EUR |
| 250+ | 1.26 EUR |
| 500+ | 1.08 EUR |
| 1000+ | 0.96 EUR |
