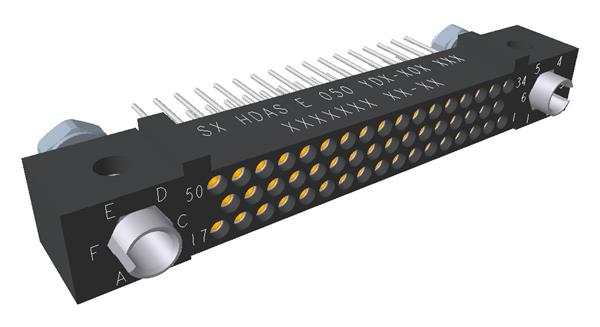

HDASE050YD-000LF AMPHENOL SOCAPEX
Hersteller: AMPHENOL SOCAPEX
Description: AMPHENOL SOCAPEX - HDASE050YD-000LF - Stiftleiste, Board-to-Board, 1.905 mm, 3 Reihe(n), 50 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: -
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 50Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: HDAS Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 3Reihe(n)
Rastermaß: 1.905mm
SVHC: No SVHC (25-Jun-2025)
Produktrezensionen
Produktbewertung abgeben
Technische Details HDASE050YD-000LF AMPHENOL SOCAPEX
Description: HDAS RECEPTALE 50 STRAIGHT PC TA, Features: Jackscrews, Mating Flange, Mounting Flange, Packaging: Tray, Connector Type: Receptacle, Voltage Rating: 750V, Current Rating (Amps): 4.5A per Contact, Mounting Type: Through Hole, Number of Positions: 50, Style: Board to Board, Operating Temperature: -65°C ~ 150°C, Contact Type: Female Socket, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.075" (1.91mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 50.0µin (1.27µm), Contact Finish - Post: Tin, Contact Length - Post: 0.270" (6.86mm), Insulation Height: 0.315" (8.00mm), Row Spacing - Mating: 0.075" (1.91mm), Number of Rows: 3.
Weitere Produktangebote HDASE050YD-000LF
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
HDASE050YD-000LF | Amphenol Aerospace Operations |
Description: HDAS RECEPTALE 50 STRAIGHT PC TA Features: Jackscrews, Mating Flange, Mounting Flange Packaging: Tray Connector Type: Receptacle Voltage Rating: 750V Current Rating (Amps): 4.5A per Contact Mounting Type: Through Hole Number of Positions: 50 Style: Board to Board Operating Temperature: -65°C ~ 150°C Contact Type: Female Socket Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Insulation Color: Black Pitch - Mating: 0.075" (1.91mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 50.0µin (1.27µm) Contact Finish - Post: Tin Contact Length - Post: 0.270" (6.86mm) Insulation Height: 0.315" (8.00mm) Row Spacing - Mating: 0.075" (1.91mm) Number of Rows: 3 |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
 |
HDASE050YD-000LF | Amphenol Socapex |
Rectangular Mil Spec Connectors HDAS Receptale 50 Straight PC tail contacts Lead Free |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| HDASE050YD-000LF |
|
Hersteller: Amphenol Aerospace Operations
Description: HDAS RECEPTALE 50 STRAIGHT PC TA
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Tray
Connector Type: Receptacle
Voltage Rating: 750V
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board
Operating Temperature: -65°C ~ 150°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.075" (1.91mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 50.0µin (1.27µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.270" (6.86mm)
Insulation Height: 0.315" (8.00mm)
Row Spacing - Mating: 0.075" (1.91mm)
Number of Rows: 3
Description: HDAS RECEPTALE 50 STRAIGHT PC TA
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Tray
Connector Type: Receptacle
Voltage Rating: 750V
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board
Operating Temperature: -65°C ~ 150°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.075" (1.91mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 50.0µin (1.27µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.270" (6.86mm)
Insulation Height: 0.315" (8.00mm)
Row Spacing - Mating: 0.075" (1.91mm)
Number of Rows: 3
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| HDASE050YD-000LF |
|
Hersteller: Amphenol Socapex
Rectangular Mil Spec Connectors HDAS Receptale 50 Straight PC tail contacts Lead Free
Rectangular Mil Spec Connectors HDAS Receptale 50 Straight PC tail contacts Lead Free
Produkt ist nicht verfügbar
