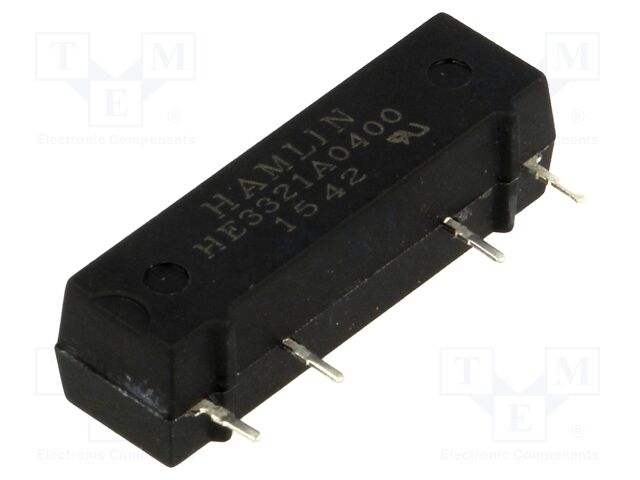

HE3321A0400 Littelfuse Inc.
Hersteller: Littelfuse Inc.Description: RELAY REED SPST 500MA 5V
Packaging: Bulk
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Coil Current: 10 mA
Coil Type: Non Latching
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500 mA
Switching Voltage: 200VDC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.75 VDC
Operate Time: 1 ms
Release Time: 1 ms
auf Bestellung 6583 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 8+ | 2.41 EUR |
| 10+ | 2.27 EUR |
| 25+ | 2.01 EUR |
| 50+ | 1.91 EUR |
| 100+ | 1.81 EUR |
| 480+ | 1.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HE3321A0400 Littelfuse Inc.
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 5V DC, Contact current max.: 0.5A, Switched voltage: max. 200V DC, Switching capacity: 10W, Coil resistance: 500Ω, Coil power consumption: 10mW, Mounting: PCB, Contact resistance: 0.15Ω, Operating temperature: -40...85°C, Body dimensions: 7x7.4x24.13mm, Coil voltage min.: 3.75V DC, Coil voltage max.: 22V DC, Manufacturer series: HE3300, Terminal pitch: 5.08mm, Case: SIL, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HE3321A0400 nach Preis ab 2.17 EUR bis 3.53 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HE3321A0400 | Hersteller : Littelfuse |
Reed Relays REED RELAY |
auf Bestellung 3314 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
HE3321A0400 | Hersteller : LITTELFUSE |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W Type of relay: reed switch Contacts configuration: SPST-NO Rated coil voltage: 5V DC Contact current max.: 0.5A Switched voltage: max. 200V DC Switching capacity: 10W Coil resistance: 500Ω Coil power consumption: 10mW Mounting: PCB Contact resistance: 0.15Ω Operating temperature: -40...85°C Body dimensions: 7x7.4x24.13mm Coil voltage min.: 3.75V DC Coil voltage max.: 22V DC Manufacturer series: HE3300 Terminal pitch: 5.08mm Case: SIL Anzahl je Verpackung: 1 Stücke |
auf Bestellung 96 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
|
|
HE3321A0400 | Hersteller : LITTELFUSE |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W Type of relay: reed switch Contacts configuration: SPST-NO Rated coil voltage: 5V DC Contact current max.: 0.5A Switched voltage: max. 200V DC Switching capacity: 10W Coil resistance: 500Ω Coil power consumption: 10mW Mounting: PCB Contact resistance: 0.15Ω Operating temperature: -40...85°C Body dimensions: 7x7.4x24.13mm Coil voltage min.: 3.75V DC Coil voltage max.: 22V DC Manufacturer series: HE3300 Terminal pitch: 5.08mm Case: SIL |
auf Bestellung 96 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
HE3321A0400 | Hersteller : LITTELFUSE |
Description: LITTELFUSE - HE3321A0400 - Reed-Relais, SPST-NO, 5 VDC, HE3300, Durchsteckmontage, 500 ohm, 500 mA tariffCode: 85364110 productTraceability: No Schaltspannung, max.: 200VDC rohsCompliant: YES Spulenwiderstand: 500ohm Relaismontage: Durchsteckmontage Schaltstrom, max.: 500mA Kontaktkonfiguration: SPST-NO Spulenspannung: 5VDC euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: HE3300 SVHC: No SVHC (17-Dec-2014) |
auf Bestellung 5207 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
 |
HE3321A0400 | Hersteller : Littelfuse |
Reed Relay 5VDC 500Ohm 0.5A SPST-NO(24.13x7x7.4)mm THT Dry |
auf Bestellung 2300 Stücke: Lieferzeit 14-21 Tag (e) |
