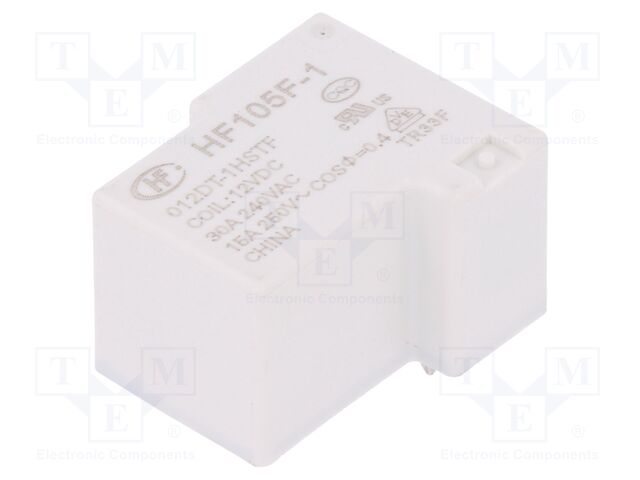

HF105F-1/012DT-1HSTF HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.277VAC
Mounting: PCB
Operating temperature: -55...85°C
Type of relay: electromagnetic
Relay variant: power
Contacts configuration: SPST-NO
Release time: 10ms
Operate time: 15ms
Body dimensions: 32.3x27.1x20mm
Contact resistance: 50mΩ
Coil power consumption: 0.9W
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 20A / 28V DC
AC contacts rating @R: 30A / 240V AC
Switched voltage: max. 28V DC; max. 277V AC
Coil resistance: 155Ω
Switching capacity: 560W; 7.2kVA
Mechanical durability: 10000000 cycles
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 168 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 30+ | 2.42 EUR |
| 32+ | 2.29 EUR |
| 40+ | 1.83 EUR |
| 42+ | 1.73 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF105F-1/012DT-1HSTF HONGFA RELAY
Category: Power Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.277VAC, Mounting: PCB, Operating temperature: -55...85°C, Type of relay: electromagnetic, Relay variant: power, Contacts configuration: SPST-NO, Release time: 10ms, Operate time: 15ms, Body dimensions: 32.3x27.1x20mm, Contact resistance: 50mΩ, Coil power consumption: 0.9W, Coil voltage min.: 9V DC, Rated coil voltage: 12V DC, Contact current max.: 40A, DC contacts rating @R: 20A / 28V DC, AC contacts rating @R: 30A / 240V AC, Switched voltage: max. 28V DC; max. 277V AC, Coil resistance: 155Ω, Switching capacity: 560W; 7.2kVA, Mechanical durability: 10000000 cycles, Contact material: AgSnO2, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF105F-1/012DT-1HSTF nach Preis ab 1.73 EUR bis 6.32 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HF105F-1/012DT-1HSTF | Hersteller : HONGFA RELAY |
Category: Power Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.277VAC Mounting: PCB Operating temperature: -55...85°C Type of relay: electromagnetic Relay variant: power Contacts configuration: SPST-NO Release time: 10ms Operate time: 15ms Body dimensions: 32.3x27.1x20mm Contact resistance: 50mΩ Coil power consumption: 0.9W Coil voltage min.: 9V DC Rated coil voltage: 12V DC Contact current max.: 40A DC contacts rating @R: 20A / 28V DC AC contacts rating @R: 30A / 240V AC Switched voltage: max. 28V DC; max. 277V AC Coil resistance: 155Ω Switching capacity: 560W; 7.2kVA Mechanical durability: 10000000 cycles Contact material: AgSnO2 |
auf Bestellung 168 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
HF105F-1/012DT-1HSTF | Hersteller : HONGFA |
Power Relay 12VDC 40A SPST-NO(32.3x27.1x20)mm THT |
auf Bestellung 165 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| HF105F-1/012DT-1HSTF | Hersteller : Hongfa |
30A; 12V; SPST; coil power 900mW; 32,2 x 20,0 x 27,0mm AgSnO2; Class F; plastic sealed; PCB HF105F-1/12DT-1HSTF power relay P HF105F1-12DT-1HSTF Anzahl je Verpackung: 40 Stücke |
auf Bestellung 61 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
|
