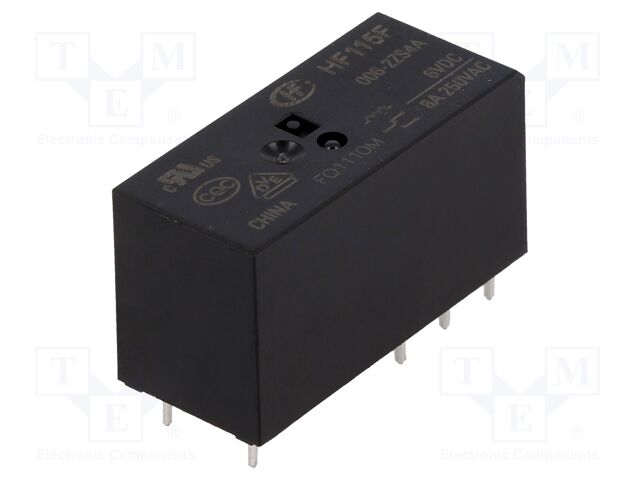

HF115F/006-2ZS4A HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 6VDC; 8A; 8A/250VAC; 8A/24VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 6V DC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 90Ω
Coil voltage min.: 4.2V DC
Coil voltage max.: 9V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 6VDC; 8A; 8A/250VAC; 8A/24VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 6V DC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 90Ω
Coil voltage min.: 4.2V DC
Coil voltage max.: 9V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 313 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
14+ | 5.23 EUR |
16+ | 4.63 EUR |
30+ | 2.46 EUR |
31+ | 2.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F/006-2ZS4A HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 6VDC; 8A; 8A/250VAC; 8A/24VDC, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 6V DC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 90Ω, Coil voltage min.: 4.2V DC, Coil voltage max.: 9V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Relay series: HF115F, Contact resistance: 100mΩ, Contact material: AgSnO2, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
