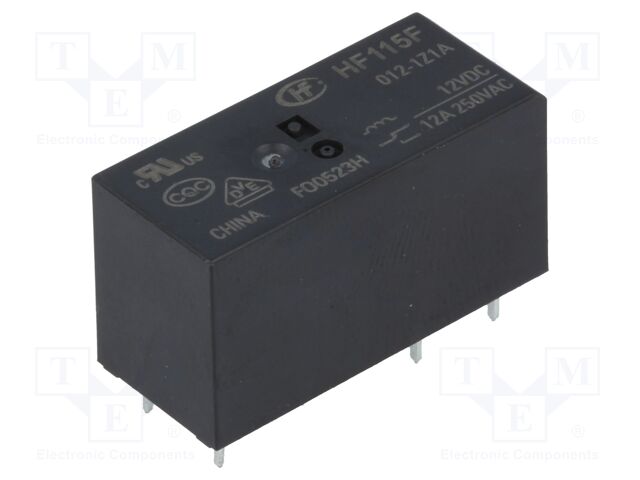

HF115F/012-1Z1A HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 3.5mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 3.5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 332 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
15+ | 5.02 EUR |
16+ | 4.5 EUR |
30+ | 2.4 EUR |
32+ | 2.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F/012-1Z1A HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/250VAC; PCB, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 12A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 18V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Relay series: HF115F, Contact resistance: 100mΩ, Contact material: AgSnO2, Terminal pitch: 3.5mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF115F/012-1Z1A nach Preis ab 2.27 EUR bis 7.94 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HF115F/012-1Z1A | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/250VAC; PCB Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 12A AC contacts rating @R: 12A / 250V AC DC contacts rating @R: 12A / 24V DC Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Coil voltage min.: 8.4V DC Coil voltage max.: 18V DC Operate time: 15ms Body dimensions: 29x12.7x15.7mm Release time: 8ms Coil power consumption: 400mW Operating temperature: -40...85°C Relay series: HF115F Contact resistance: 100mΩ Contact material: AgSnO2 Terminal pitch: 3.5mm |
auf Bestellung 332 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
HF115F/012-1Z1A | Hersteller : HONGFA | Power Relay 12VDC 12A SPDT(29mm 12.7mm 15.7mm) THT |
auf Bestellung 332 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
HF115F/012-1Z1A | Hersteller : Hongfa | 45285073928 |
Produkt ist nicht verfügbar |
