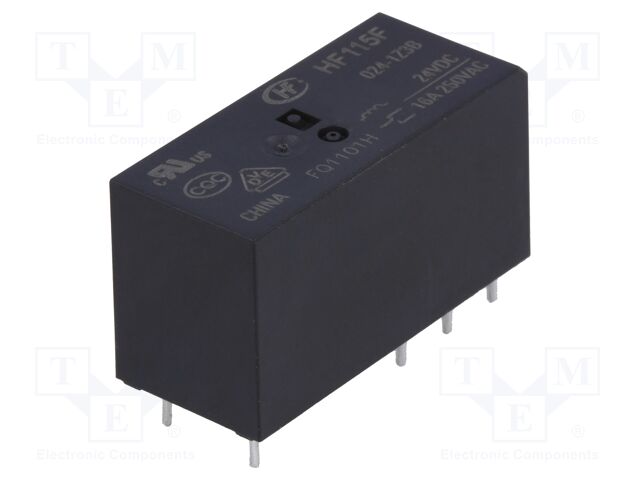

HF115F/024-1Z3B HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; HF115F
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 36V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Manufacturer series: HF115F
Anzahl je Verpackung: 1 Stücke
auf Bestellung 441 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 16+ | 4.65 EUR |
| 17+ | 4.46 EUR |
| 28+ | 2.63 EUR |
| 29+ | 2.49 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F/024-1Z3B HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; HF115F, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.44kΩ, Coil voltage min.: 16.8V DC, Coil voltage max.: 36V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Manufacturer series: HF115F, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF115F/024-1Z3B nach Preis ab 2.49 EUR bis 7.79 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HF115F/024-1Z3B | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; HF115F Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 16A AC contacts rating @R: 16A / 250V AC DC contacts rating @R: 16A / 24V DC Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Coil voltage min.: 16.8V DC Coil voltage max.: 36V DC Operate time: 15ms Body dimensions: 29x12.7x15.7mm Release time: 8ms Coil power consumption: 400mW Operating temperature: -40...85°C Contact resistance: 100mΩ Contact material: AgNi Terminal pitch: 5mm Manufacturer series: HF115F |
auf Bestellung 441 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| HF115F/024-1Z3B | Hersteller : Hongfa |
16A; 24V; SPDT; coil power 400mW; 29,0 x 12,7 x 15,7mm PCB; equivalent: RM85Z, RM83Z, AZ761, G2RL; AgNi HF115F/024-1Z3B power relay P HF115f024-1z3b Anzahl je Verpackung: 10 Stücke |
auf Bestellung 340 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
| HF115F/024-1Z3B | Hersteller : HONGFA | Miniature High Power Relay |
auf Bestellung 441 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
| HF115F/024-1Z3B | Hersteller : Hongfa |
45285073940 |
Produkt ist nicht verfügbar |
