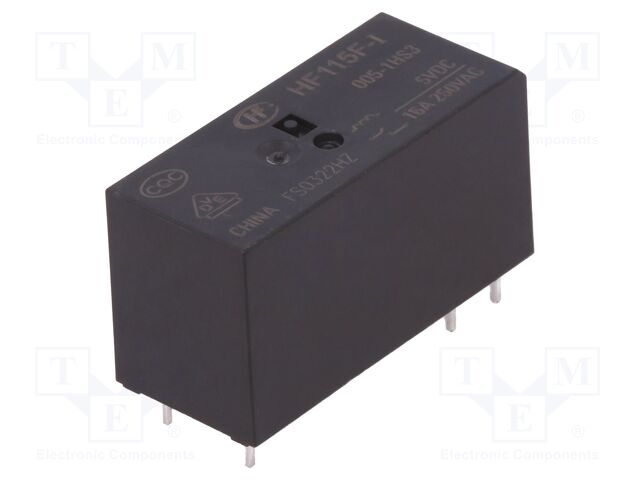

HF115F-I/005-1HS3 HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 5V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 62Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 7.5V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2In2O3
Terminal pitch: 5mm
Max surge current: 80A
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 5V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 62Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 7.5V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2In2O3
Terminal pitch: 5mm
Max surge current: 80A
auf Bestellung 383 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
12+ | 6.03 EUR |
14+ | 5.43 EUR |
26+ | 2.77 EUR |
28+ | 2.62 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F-I/005-1HS3 HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 5V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Switched voltage: max. 125V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 62Ω, Coil voltage min.: 3.5V DC, Coil voltage max.: 7.5V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Relay series: HF115F, Contact resistance: 100mΩ, Contact material: AgSnO2In2O3, Terminal pitch: 5mm, Max surge current: 80A, Anzahl je Verpackung: 1 Stücke.
