Produkte > HONGFA RELAY > HF115F-I/012-1HS3

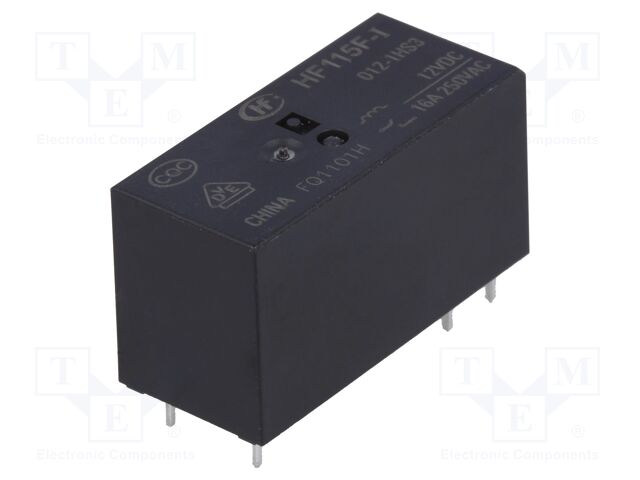

HF115F-I/012-1HS3

HF115F-I/012-1HS3 HONGFA RELAY

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AFBFD662E2663E27&compId=HF115F-I_en.pdf?ci_sign=3468028bf7c1c24db8dbc4e68b959478155fd92c Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Contact resistance: 100mΩ
Contact material: AgSnO2In2O3
Terminal pitch: 5mm
Operating temperature: -40...85°C
Manufacturer series: HF115F
Max surge current: 80A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 292 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
33+2.19 EUR
36+2 EUR
39+1.87 EUR
100+1.66 EUR
1000+1.1 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HF115F-I/012-1HS3 HONGFA RELAY

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Switched voltage: max. 125V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 18V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Contact resistance: 100mΩ, Contact material: AgSnO2In2O3, Terminal pitch: 5mm, Operating temperature: -40...85°C, Manufacturer series: HF115F, Max surge current: 80A, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote HF115F-I/012-1HS3 nach Preis ab 1.66 EUR bis 3.33 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
HF115F-I/012-1HS3 HF115F-I/012-1HS3 Hersteller : HONGFA RELAY pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AFBFD662E2663E27&compId=HF115F-I_en.pdf?ci_sign=3468028bf7c1c24db8dbc4e68b959478155fd92c Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Contact resistance: 100mΩ
Contact material: AgSnO2In2O3
Terminal pitch: 5mm
Operating temperature: -40...85°C
Manufacturer series: HF115F
Max surge current: 80A
auf Bestellung 292 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
33+2.19 EUR
36+2 EUR
39+1.87 EUR
100+1.66 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
HF115F-I/012-1HS3 Hersteller : Hongfa 16A(80A); 12V; SPST-NO; coil power 400mW; 29,0 x 12,7 x 15,7mm PCB; equivalent: G5RL HF115F-I/012-1HS3 (JQX-115F-I) power relay P HF115Fi012-1hs3
Anzahl je Verpackung: 50 Stücke
auf Bestellung 151 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
50+3.01 EUR
Mindestbestellmenge: 50
Im Einkaufswagen  Stück im Wert von  UAH
HF115F-I/012-1HS3 Hersteller : HONGFA HF115F-I/012-1HS3
auf Bestellung 292 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
44+3.33 EUR
100+2.79 EUR
Mindestbestellmenge: 44
Im Einkaufswagen  Stück im Wert von  UAH
