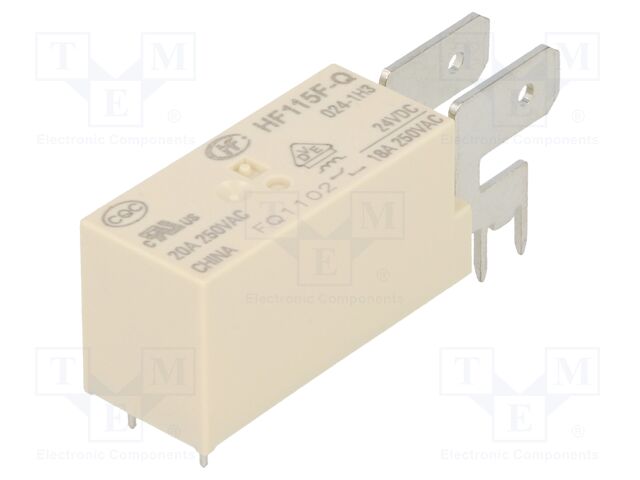

HF115F-Q/024-1H3 HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Contacts configuration: SPST-NO
AC contacts rating @R: 20A / 250V AC
DC contacts rating @R: 20A / 24V DC
Operating temperature: -40...125°C
Contact material: AgNi
Contact current max.: 20A
Contact resistance: 100mΩ
Terminal pitch: 5mm
Mounting: PCB
Body dimensions: 45x15.7x12.7mm
Coil resistance: 1.44kΩ
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil voltage max.: 36V DC
Coil power consumption: 400mW
Operate time: 15ms
Release time: 8ms
Switched voltage: max. 300V DC; max. 440V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 239 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 13+ | 5.75 EUR |
| 14+ | 5.18 EUR |
| 22+ | 3.33 EUR |
| 23+ | 3.15 EUR |
| 1000+ | 3.03 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F-Q/024-1H3 HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC, Contacts configuration: SPST-NO, AC contacts rating @R: 20A / 250V AC, DC contacts rating @R: 20A / 24V DC, Operating temperature: -40...125°C, Contact material: AgNi, Contact current max.: 20A, Contact resistance: 100mΩ, Terminal pitch: 5mm, Mounting: PCB, Body dimensions: 45x15.7x12.7mm, Coil resistance: 1.44kΩ, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil voltage max.: 36V DC, Coil power consumption: 400mW, Operate time: 15ms, Release time: 8ms, Switched voltage: max. 300V DC; max. 440V AC, Anzahl je Verpackung: 1 Stücke.
