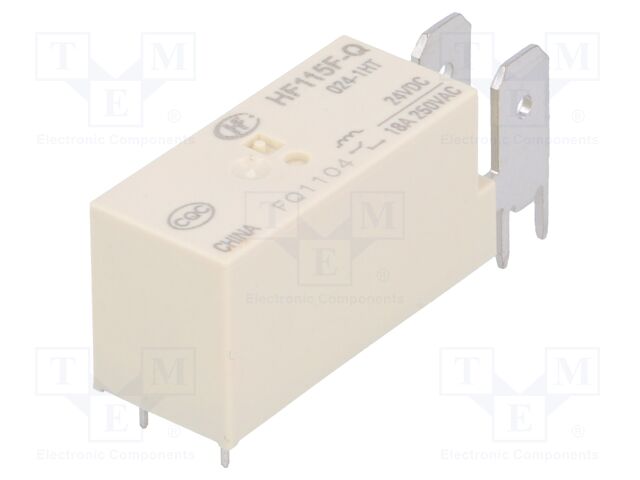

HF115F-Q/024-1HT HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Body dimensions: 41x15.7x12.7mm
Operating temperature: -40...125°C
Contact material: AgSnO2
Coil resistance: 1.44kΩ
Contacts configuration: SPST-NO
AC contacts rating @R: 20A / 250V AC
DC contacts rating @R: 20A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil voltage max.: 36V DC
Coil power consumption: 400mW
Operate time: 15ms
Release time: 8ms
Switched voltage: max. 300V DC; max. 440V AC
Contact current max.: 20A
Contact resistance: 100mΩ
Mounting: PCB
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.15 EUR |
| 15+ | 4.76 EUR |
| 16+ | 4.46 EUR |
| 1000+ | 2.66 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F-Q/024-1HT HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC, Body dimensions: 41x15.7x12.7mm, Operating temperature: -40...125°C, Contact material: AgSnO2, Coil resistance: 1.44kΩ, Contacts configuration: SPST-NO, AC contacts rating @R: 20A / 250V AC, DC contacts rating @R: 20A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil voltage max.: 36V DC, Coil power consumption: 400mW, Operate time: 15ms, Release time: 8ms, Switched voltage: max. 300V DC; max. 440V AC, Contact current max.: 20A, Contact resistance: 100mΩ, Mounting: PCB, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
