Produkte > HONGFA RELAY > HF115F-T/012-1HS3A

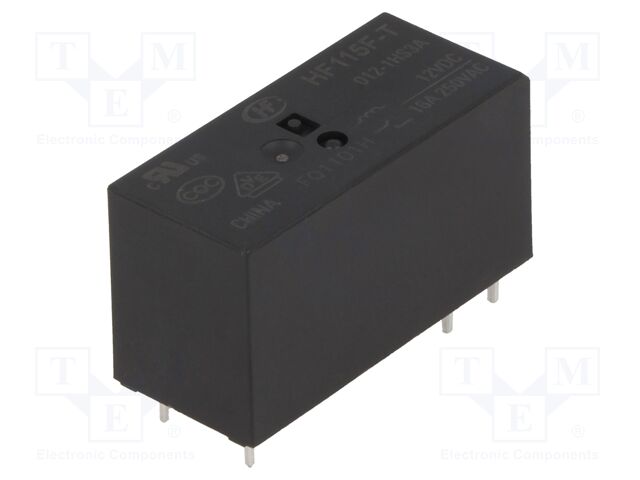

HF115F-T/012-1HS3A

HF115F-T/012-1HS3A HONGFA RELAY

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AFBFEC65E3291E27&compId=hf115f-tth.pdf?ci_sign=0db8149cbb0c2959ab97529e84e84c61732c65f7 Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Operate time: 15ms
Body dimensions: 29x15.7x12.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...105°C
Contact material: AgSnO2
Terminal pitch: 5mm
Coil voltage max.: 15.6V DC
Contact resistance: 100mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 351 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
23+3.15 EUR
26+2.85 EUR
40+1.82 EUR
42+1.72 EUR
1000+1.64 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HF115F-T/012-1HS3A HONGFA RELAY

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Switched voltage: max. 125V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 8.4V DC, Operate time: 15ms, Body dimensions: 29x15.7x12.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...105°C, Contact material: AgSnO2, Terminal pitch: 5mm, Coil voltage max.: 15.6V DC, Contact resistance: 100mΩ, Anzahl je Verpackung: 1 Stücke.
