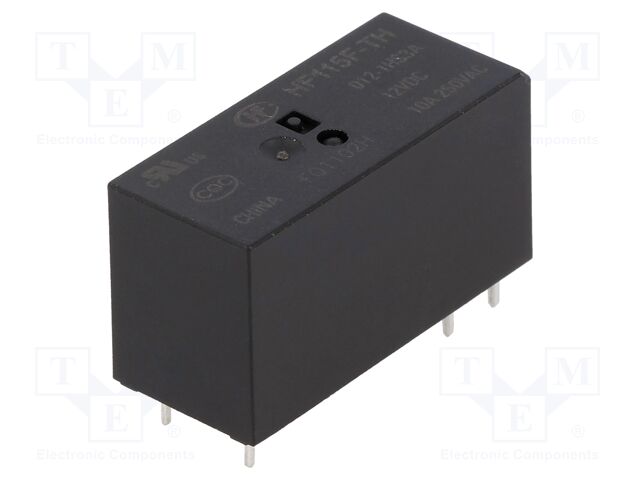

HF115F-TH/012-1HS3A HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 576Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 15ms
Body dimensions: 29x15.7x12.7mm
Release time: 8ms
Coil power consumption: 250mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 125V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 576Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 15ms
Body dimensions: 29x15.7x12.7mm
Release time: 8ms
Coil power consumption: 250mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 465 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
15+ | 4.96 EUR |
17+ | 4.46 EUR |
24+ | 3.06 EUR |
25+ | 2.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F-TH/012-1HS3A HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 10A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 125V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 576Ω, Coil voltage min.: 9V DC, Coil voltage max.: 15.6V DC, Operate time: 15ms, Body dimensions: 29x15.7x12.7mm, Release time: 8ms, Coil power consumption: 250mW, Operating temperature: -40...105°C, Contact resistance: 100mΩ, Contact material: AgSnO2, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
