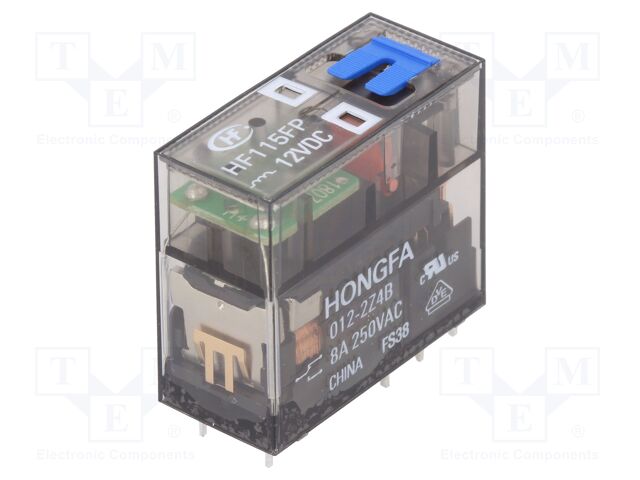

HF115FP/012-2Z4B HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
Switched voltage: max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x25.5x13mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...70°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
Switched voltage: max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x25.5x13mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...70°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
auf Bestellung 492 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 12.98 EUR |
12+ | 6.19 EUR |
13+ | 5.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115FP/012-2Z4B HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 12V DC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, Switched voltage: max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 18V DC, Operate time: 15ms, Body dimensions: 29x25.5x13mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...70°C, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
