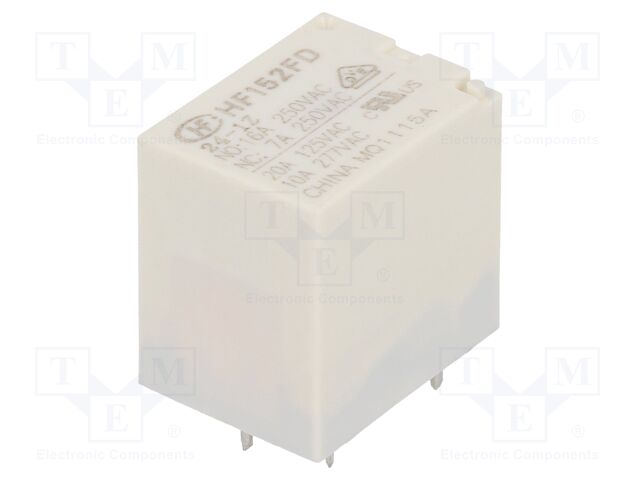

HF152FD/24-1Z HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 17A; 17A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 17A
AC contacts rating @R: 17A / 125V AC
Switched voltage: max. 400V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 1.6kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 31.2V DC
Operate time: 10ms
Body dimensions: 21x16x20.6mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Contact material: AgNi
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 17A; 17A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 17A
AC contacts rating @R: 17A / 125V AC
Switched voltage: max. 400V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 1.6kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 31.2V DC
Operate time: 10ms
Body dimensions: 21x16x20.6mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Contact material: AgNi
Anzahl je Verpackung: 1 Stücke
auf Bestellung 785 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
20+ | 3.66 EUR |
22+ | 3.33 EUR |
40+ | 1.79 EUR |
43+ | 1.69 EUR |
