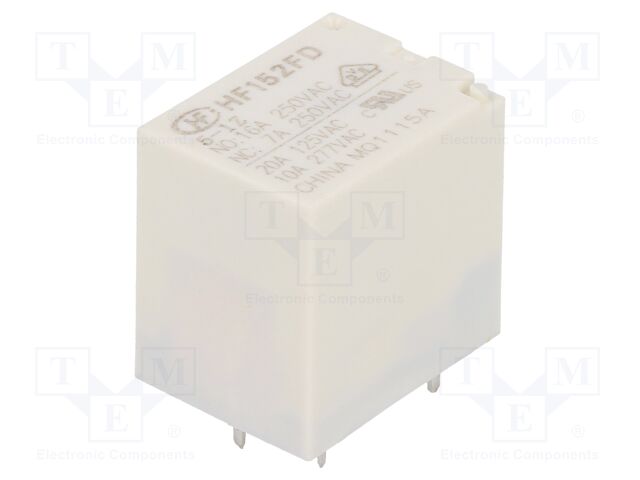

HF152FD/5-1Z HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 17A; 17A/125VAC; PCB
Mounting: PCB
Body dimensions: 21x16x20.6mm
Operating temperature: -40...105°C
Release time: 5ms
Operate time: 10ms
Contact resistance: 100mΩ
Coil power consumption: 360mW
Coil voltage min.: 3.75V DC
Contact current max.: 17A
Rated coil voltage: 5V DC
AC contacts rating @R: 17A / 125V AC
Coil voltage max.: 6.5V DC
Switched voltage: max. 400V AC
Coil resistance: 70Ω
Contact material: AgNi
Contacts configuration: SPDT
Type of relay: electromagnetic
Relay variant: subminiature
Anzahl je Verpackung: 1 Stücke
auf Bestellung 839 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 23+ | 3.25 EUR |
| 25+ | 2.92 EUR |
| 38+ | 1.89 EUR |
| 40+ | 1.79 EUR |
| 1000+ | 1.72 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF152FD/5-1Z HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 17A; 17A/125VAC; PCB, Mounting: PCB, Body dimensions: 21x16x20.6mm, Operating temperature: -40...105°C, Release time: 5ms, Operate time: 10ms, Contact resistance: 100mΩ, Coil power consumption: 360mW, Coil voltage min.: 3.75V DC, Contact current max.: 17A, Rated coil voltage: 5V DC, AC contacts rating @R: 17A / 125V AC, Coil voltage max.: 6.5V DC, Switched voltage: max. 400V AC, Coil resistance: 70Ω, Contact material: AgNi, Contacts configuration: SPDT, Type of relay: electromagnetic, Relay variant: subminiature, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF152FD/5-1Z nach Preis ab 1.79 EUR bis 5.02 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HF152FD/5-1Z | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 17A; 17A/125VAC; PCB Mounting: PCB Body dimensions: 21x16x20.6mm Operating temperature: -40...105°C Release time: 5ms Operate time: 10ms Contact resistance: 100mΩ Coil power consumption: 360mW Coil voltage min.: 3.75V DC Contact current max.: 17A Rated coil voltage: 5V DC AC contacts rating @R: 17A / 125V AC Coil voltage max.: 6.5V DC Switched voltage: max. 400V AC Coil resistance: 70Ω Contact material: AgNi Contacts configuration: SPDT Type of relay: electromagnetic Relay variant: subminiature |
auf Bestellung 839 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| HF152FD/5-1Z | Hersteller : Hongfa |
5V; 17A; SPDT; coil power 360mW; 21,2 x 16 x 20,6mm PCB; flux proofed; AgNi HF152FD/5-1Z subminiature high power relay P HF152fd005-1z Anzahl je Verpackung: 50 Stücke |
auf Bestellung 55 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
| HF152FD/5-1Z | Hersteller : HONGFA | HF152FD/5-1Z |
auf Bestellung 844 Stücke: Lieferzeit 14-21 Tag (e) |
|
