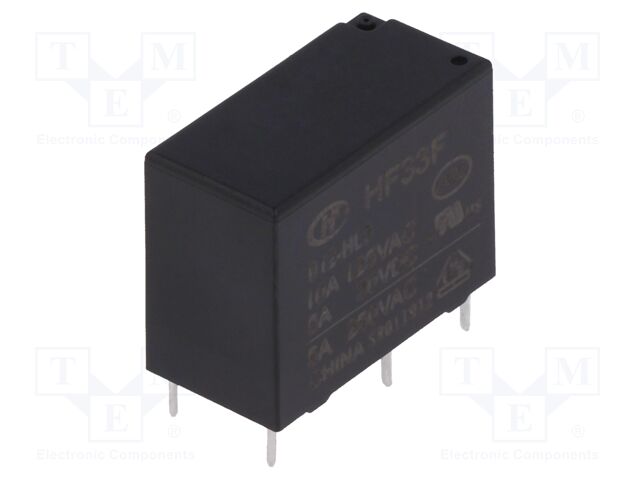

HF33F/012-HL3 HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/250VAC; PCB
Mounting: PCB
Operating temperature: -40...70°C
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Coil power consumption: 200mW
Operate time: 8ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Terminal pitch: 7.6mm
Body dimensions: 20.5x15.3x10.2mm
Contact material: AgNi
Coil resistance: 720Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: subminiature
Rated coil voltage: 12V DC
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/250VAC; PCB
Mounting: PCB
Operating temperature: -40...70°C
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Coil power consumption: 200mW
Operate time: 8ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Terminal pitch: 7.6mm
Body dimensions: 20.5x15.3x10.2mm
Contact material: AgNi
Coil resistance: 720Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: subminiature
Rated coil voltage: 12V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2619 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
35+ | 2.06 EUR |
39+ | 1.86 EUR |
61+ | 1.19 EUR |
64+ | 1.13 EUR |
1000+ | 1.09 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF33F/012-HL3 HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/250VAC; PCB, Mounting: PCB, Operating temperature: -40...70°C, Coil voltage min.: 9V DC, Coil voltage max.: 18V DC, Coil power consumption: 200mW, Operate time: 8ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 10A, Contact resistance: 100mΩ, Terminal pitch: 7.6mm, Body dimensions: 20.5x15.3x10.2mm, Contact material: AgNi, Coil resistance: 720Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: subminiature, Rated coil voltage: 12V DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF33F/012-HL3 nach Preis ab 1.09 EUR bis 3 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HF33F/012-HL3 | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/250VAC; PCB Mounting: PCB Operating temperature: -40...70°C Coil voltage min.: 9V DC Coil voltage max.: 18V DC Coil power consumption: 200mW Operate time: 8ms Release time: 5ms Switched voltage: max. 30V DC; max. 250V AC Contact current max.: 10A Contact resistance: 100mΩ Terminal pitch: 7.6mm Body dimensions: 20.5x15.3x10.2mm Contact material: AgNi Coil resistance: 720Ω Contacts configuration: SPST-NO AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Type of relay: electromagnetic Relay variant: subminiature Rated coil voltage: 12V DC |
auf Bestellung 2619 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
HF33F/012-HL3 | Hersteller : HONGFA | Power Relay 12VDC 10A SPST-NO(20.5mm 10.2mm 15.7mm) THT |
auf Bestellung 2621 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
HF33F/012-HL3 Produktcode: 153620 |
Relais |
Produkt ist nicht verfügbar
|
|||||||||||||||||||
HF33F/012-HL3 | Hersteller : Hongfa | Power Relay 12VDC 10A SPST-NO(20.5x10.2x15.7)mm THT |
Produkt ist nicht verfügbar |
