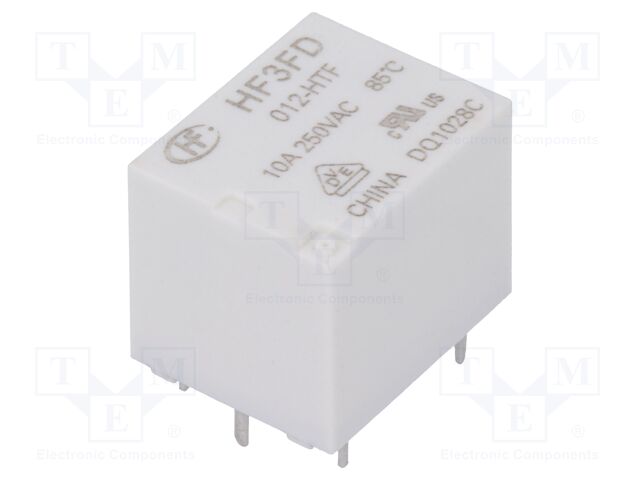

HF3FD/012-HTF HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 10A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 28V DC
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.5x15.2mm
Release time: 5ms
Coil power consumption: 360mW
Contact resistance: 100mΩ
Contact material: AgSnO2
Operating temperature: -40...105°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1246 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 40+ | 1.79 EUR |
| 45+ | 1.62 EUR |
| 47+ | 1.53 EUR |
| 100+ | 1.34 EUR |
| 1000+ | 0.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF3FD/012-HTF HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 10A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 15A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 28V DC, Switched voltage: max. 30V DC; max. 277V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 400Ω, Coil voltage min.: 9V DC, Coil voltage max.: 15.6V DC, Operate time: 10ms, Body dimensions: 19x15.5x15.2mm, Release time: 5ms, Coil power consumption: 360mW, Contact resistance: 100mΩ, Contact material: AgSnO2, Operating temperature: -40...105°C, Anzahl je Verpackung: 1 Stücke.
