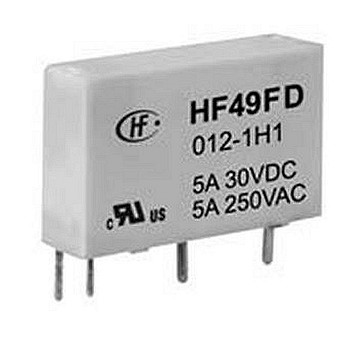

HF49FD/005-1H12T HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; PCB
Mounting: PCB
Terminal pitch: 7.62mm
Operating temperature: -40...85°C
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil voltage min.: 3.5V DC
Coil voltage max.: 6V DC
Coil power consumption: 120mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 5A
Contact resistance: 100mΩ
Body dimensions: 20x5x12.5mm
Contact material: AgSnO2
Coil resistance: 208Ω
Contacts configuration: SPST-NO
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; PCB
Mounting: PCB
Terminal pitch: 7.62mm
Operating temperature: -40...85°C
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil voltage min.: 3.5V DC
Coil voltage max.: 6V DC
Coil power consumption: 120mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 5A
Contact resistance: 100mΩ
Body dimensions: 20x5x12.5mm
Contact material: AgSnO2
Coil resistance: 208Ω
Contacts configuration: SPST-NO
auf Bestellung 1000 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
27+ | 2.72 EUR |
30+ | 2.45 EUR |
31+ | 2.36 EUR |
33+ | 2.23 EUR |
100+ | 2.14 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF49FD/005-1H12T HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; PCB, Mounting: PCB, Terminal pitch: 7.62mm, Operating temperature: -40...85°C, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 5V DC, Coil voltage min.: 3.5V DC, Coil voltage max.: 6V DC, Coil power consumption: 120mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 5A, Contact resistance: 100mΩ, Body dimensions: 20x5x12.5mm, Contact material: AgSnO2, Coil resistance: 208Ω, Contacts configuration: SPST-NO, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF49FD/005-1H12T nach Preis ab 2.14 EUR bis 4.09 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HF49FD/005-1H12T | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; PCB Mounting: PCB Terminal pitch: 7.62mm Operating temperature: -40...85°C AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Type of relay: electromagnetic Relay variant: miniature Rated coil voltage: 5V DC Coil voltage min.: 3.5V DC Coil voltage max.: 6V DC Coil power consumption: 120mW Operate time: 10ms Release time: 5ms Switched voltage: max. 30V DC; max. 250V AC Contact current max.: 5A Contact resistance: 100mΩ Body dimensions: 20x5x12.5mm Contact material: AgSnO2 Coil resistance: 208Ω Contacts configuration: SPST-NO Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1000 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
HF49FD/005-1H12T | Hersteller : HONGFA | Miniature Power Relay |
auf Bestellung 3000 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
HF49FD/005-1H12T | Hersteller : Hongfa Relay | HF49F Series 5 A SPST 5 VDC 7.62 mm PCB Mount Sealed Miniature Power Relay |
auf Bestellung 90 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
HF49FD/005-1H12T | Реле 1form-A coil=5vdc cont=5a 250vac/5а 30vdc, відстань між висновками комутації 7.62мм. Стара назва HF49FA/005-1H1T(555) |
auf Bestellung 1039 Stücke: Lieferzeit 7-21 Tag (e) |
|||||||||||||||||||
HF49FD/005-1H12T Produktcode: 99806 |
Relais Relaistyp: Реле середньої потужності (5-20А) Strom max: 5 A |
Produkt ist nicht verfügbar
|
|||||||||||||||||||
HF49FD/005-1H12T | Hersteller : Hongfa | 45275300825 |
Produkt ist nicht verfügbar |
