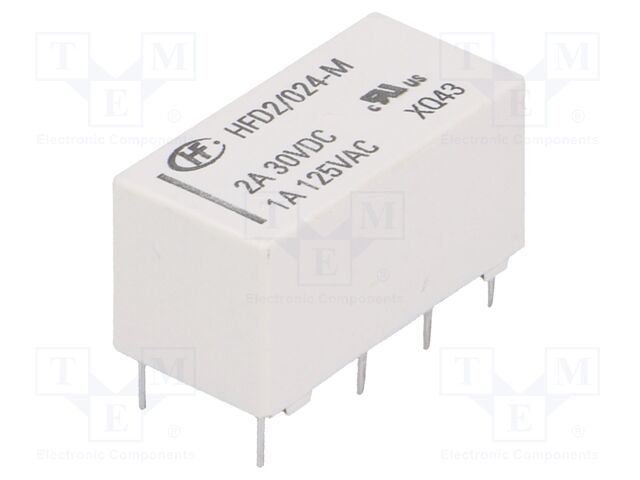

HFD2/024-M HONGFA
Hersteller: HONGFA
Description: HONGFA - HFD2/024-M - Signalrelais, 24 VDC, DPDT, 3 A, HFD2 Series, Durchsteckmontage, Bistabile Doppelspule
tariffCode: 85364900
euEccn: NLR
rohsCompliant: YES
Relaisanschlüsse: PC-Pin
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Bistabile Doppelspule
Kontaktmaterial: Silber-Palladium
isCanonical: Y
Kontaktstrom: 3A
Spulenwiderstand: 2.88kohm
SVHC: No SVHC (04-Feb-2026)
Kontaktspannung V DC: 30V
Relaismontage: Durchsteckmontage
Produktpalette: HFD2 Series
productTraceability: No
usEccn: EAR99
Spulenspannung: 24VDC
Kontaktkonfiguration: DPDT
Kontaktspannung V AC: -
| Anzahl | Privatkunde |
|---|---|
| 25+ | 10.2 EUR |
| 41+ | 5.74 EUR |
| 45+ | 4.87 EUR |
| 50+ | 4.47 EUR |
| 100+ | 4.26 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
14-21 Tag (e)
Mindestmenge:
25 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details HFD2/024-M HONGFA
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; Ucoil: 24VDC; DPDT; 3A; 1A/125VAC; 3A/30VDC, Type of relay: electromagnetic, Coil voltage: 24V DC, Contacts configuration: DPDT, Contact current max.: 3A, AC contacts rating @R: 1A / 125V AC, DC contacts rating @R: 3A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: subminiature, Coil resistance: 2.88kΩ, Operate time: 4.5ms, Release time: 3.5ms, Contact material: AgPd/Au 0,2μm, Terminal pitch: 5.08mm, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Mounting: PCB, Coil voltage min.: 18V DC, Coil power consumption: 200mW, Body dimensions: 20.2x10.2x10.6mm, Coil voltage max.: 48V DC.
Weitere Produktangebote HFD2/024-M nach Preis ab 3.19 EUR bis 4.07 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFD2/024-M | HONGFA RELAY |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; Ucoil: 24VDC; DPDT; 3A; 1A/125VAC; 3A/30VDC Type of relay: electromagnetic Coil voltage: 24V DC Contacts configuration: DPDT Contact current max.: 3A AC contacts rating @R: 1A / 125V AC DC contacts rating @R: 3A / 30V DC Switched voltage: max. 220V DC; max. 250V AC Relay variant: subminiature Coil resistance: 2.88kΩ Operate time: 4.5ms Release time: 3.5ms Contact material: AgPd/Au 0,2μm Terminal pitch: 5.08mm Operating temperature: -40...85°C Contact resistance: 100mΩ Mounting: PCB Coil voltage min.: 18V DC Coil power consumption: 200mW Body dimensions: 20.2x10.2x10.6mm Coil voltage max.: 48V DC |
auf Bestellung 2630 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||
| HFD2/024-M | HONGFA | HFD2/024-M |
auf Bestellung 2765 Stücke: Lieferzeit 14-21 Tag (e) |
|
| HFD2/024-M |
![]() |
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 24VDC; DPDT; 3A; 1A/125VAC; 3A/30VDC
Type of relay: electromagnetic
Coil voltage: 24V DC
Contacts configuration: DPDT
Contact current max.: 3A
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 3A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Coil resistance: 2.88kΩ
Operate time: 4.5ms
Release time: 3.5ms
Contact material: AgPd/Au 0,2μm
Terminal pitch: 5.08mm
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Mounting: PCB
Coil voltage min.: 18V DC
Coil power consumption: 200mW
Body dimensions: 20.2x10.2x10.6mm
Coil voltage max.: 48V DC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 24VDC; DPDT; 3A; 1A/125VAC; 3A/30VDC
Type of relay: electromagnetic
Coil voltage: 24V DC
Contacts configuration: DPDT
Contact current max.: 3A
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 3A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Coil resistance: 2.88kΩ
Operate time: 4.5ms
Release time: 3.5ms
Contact material: AgPd/Au 0,2μm
Terminal pitch: 5.08mm
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Mounting: PCB
Coil voltage min.: 18V DC
Coil power consumption: 200mW
Body dimensions: 20.2x10.2x10.6mm
Coil voltage max.: 48V DC
auf Bestellung 2630 Stücke:
Lieferzeit 14-21 Tag (e)
| HFD2/024-M |
Hersteller: HONGFA
HFD2/024-M
HFD2/024-M
auf Bestellung 2765 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 45+ | 4.07 EUR |
| 50+ | 3.69 EUR |
| 100+ | 3.42 EUR |
| 500+ | 3.19 EUR |
